SKU: SB.209

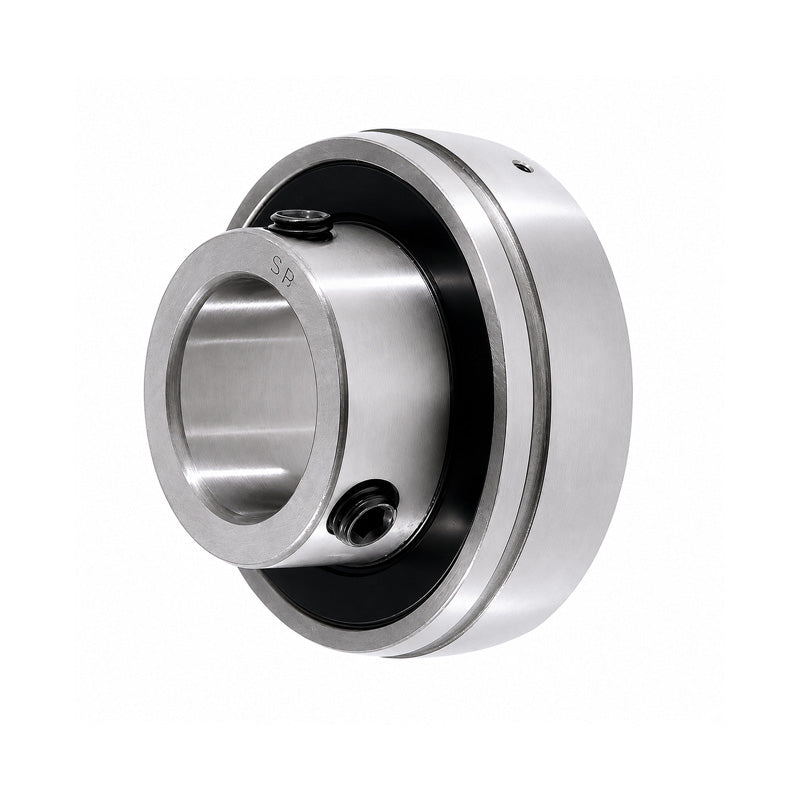

SB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
SB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
£8.70
ex VAT£10.44inc. VAT
Regular price
Sale price
£8.70
ex VAT£10.44
inc. VAT
In stock
Price Break
10+
£7.74
19+
£7.31
29+
£7.22
39+
£7.13
49+
£7.05
74+
£6.96
99+
£6.53
199+
£6.44
249+
£6.35
499+
£6.26
999+
£6.09
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 45mm |
|---|---|
| Be | 19mm |
| D | 85mm |
| Bi | 41.2mm |
| n | 9.5mm |
| m | 31.7mm |
| G | 8.2mm |
| h | 6.3mm |
| Grub screw | M8X1.0 |
| Weight | 0.594 kg |
| Dynamic load | 3260 kgf |
| Static load | 2450 kgf |
| Rec max speed | 3700 rpm |
