SKU: SB.208

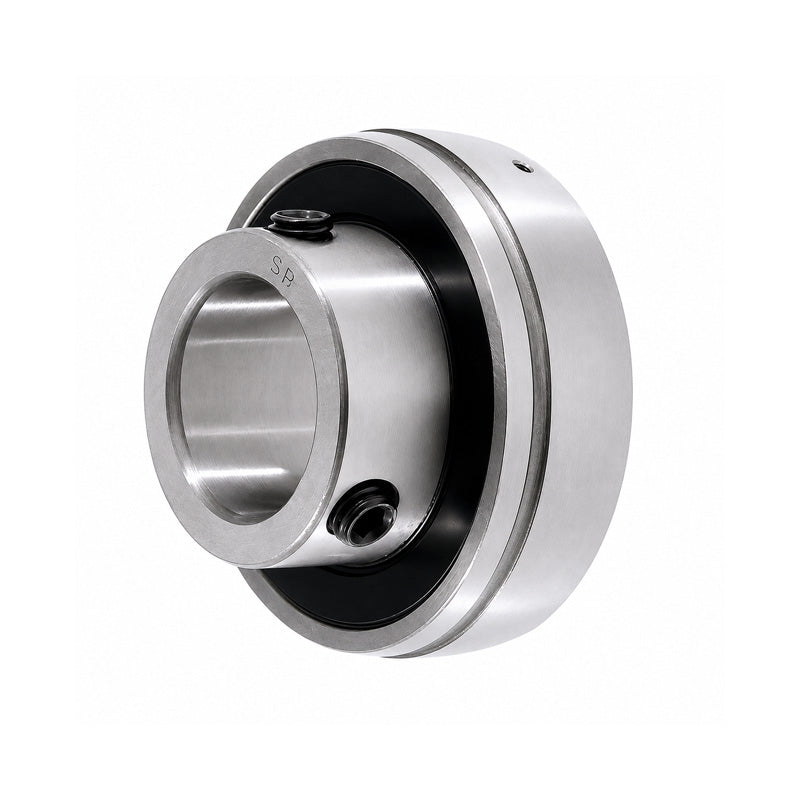

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
Regular price
£8.07
ex VAT£9.68inc. VAT
Regular price
Sale price
£8.07
ex VAT£9.68
inc. VAT
In stock
Price Break
3+
£7.18
4+
£6.78
9+
£6.70
19+
£6.62
49+
£6.54
99+
£6.46
499+
£6.05
999+
£5.97
1999+
£5.89
2999+
£5.81
4999+
£5.65
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- SB
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
