SKU: SB.207-23

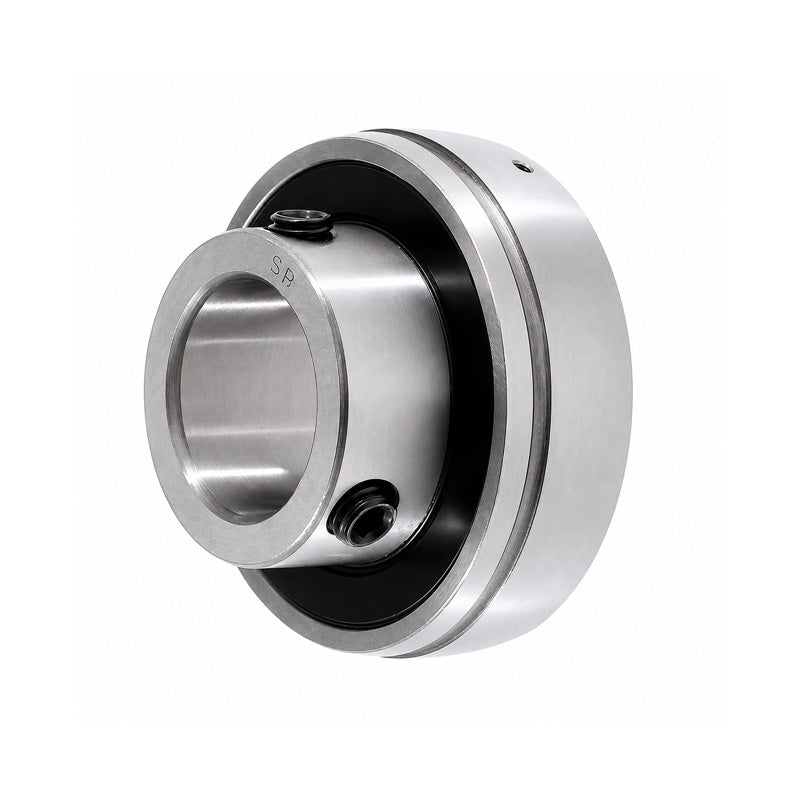

SB207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
SB207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
Regular price
£13.27
ex VAT£15.92inc. VAT
Regular price
Sale price
£13.27
ex VAT£15.92
inc. VAT
In stock
Price Break
3+
£11.81
4+
£11.15
9+
£11.01
19+
£10.88
49+
£10.75
99+
£10.62
499+
£9.95
999+
£9.82
1999+
£9.69
2999+
£9.55
4999+
£9.29
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- SB
Technical
Technical

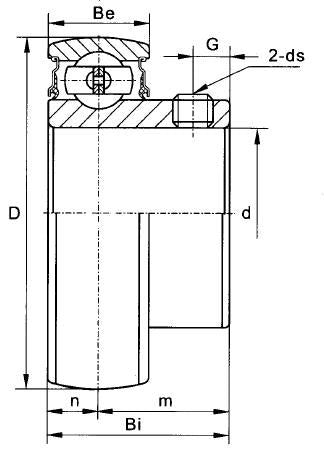

| d | 1-7/16 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
