SKU: SB.207-20

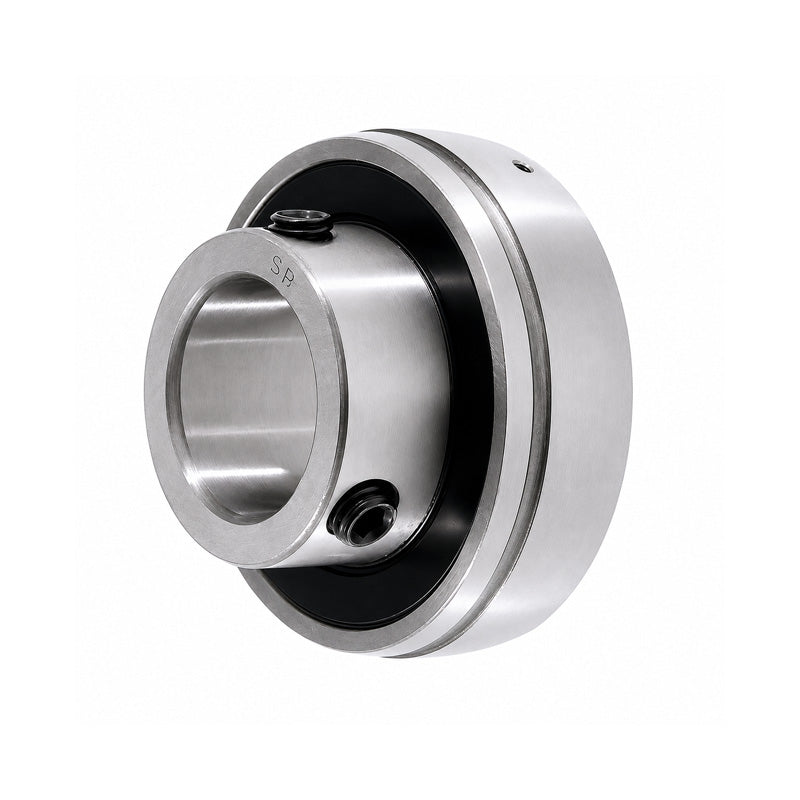

SB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
SB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
Regular price
£10.85
ex VAT£13.02inc. VAT
Regular price
Sale price
£10.85
ex VAT£13.02
inc. VAT
In stock
Price Break
3+
£9.66
4+
£9.12
9+
£9.01
19+
£8.90
49+
£8.79
99+
£8.68
499+
£8.14
999+
£8.03
1999+
£7.92
2999+
£7.81
4999+
£7.60
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- SB
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
