SKU: SB.205

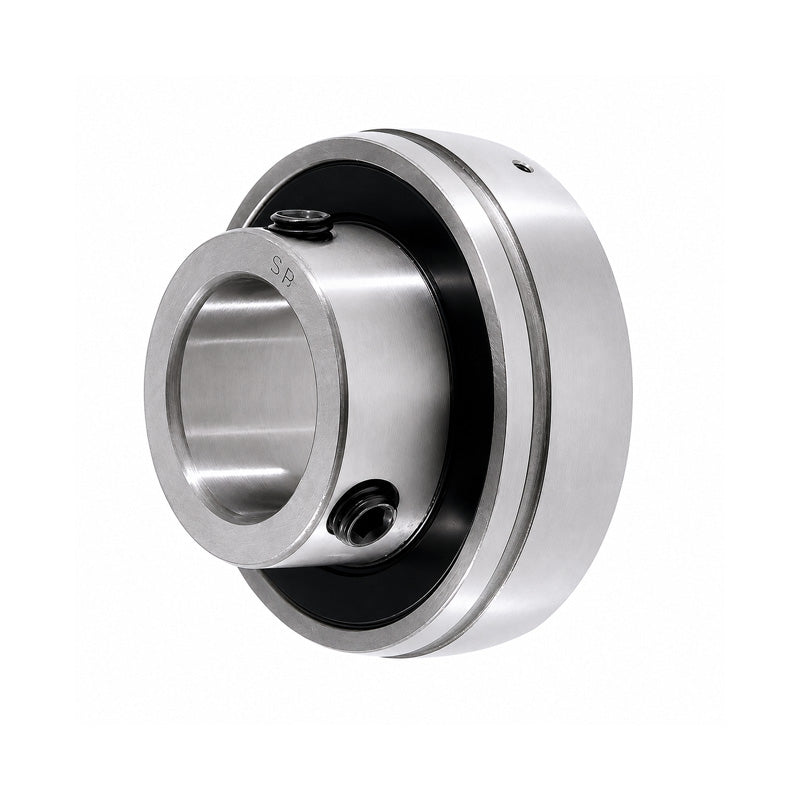

SB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
SB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
£6.62
ex VAT£7.94inc. VAT
Regular price
Sale price
£6.62
ex VAT£7.94
inc. VAT
In stock
Price Break
10+
£5.89
19+
£5.56
29+
£5.49
39+
£5.43
49+
£5.36
74+
£5.30
99+
£4.97
199+
£4.90
249+
£4.83
499+
£4.77
999+
£4.63
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
