SKU: SB.204

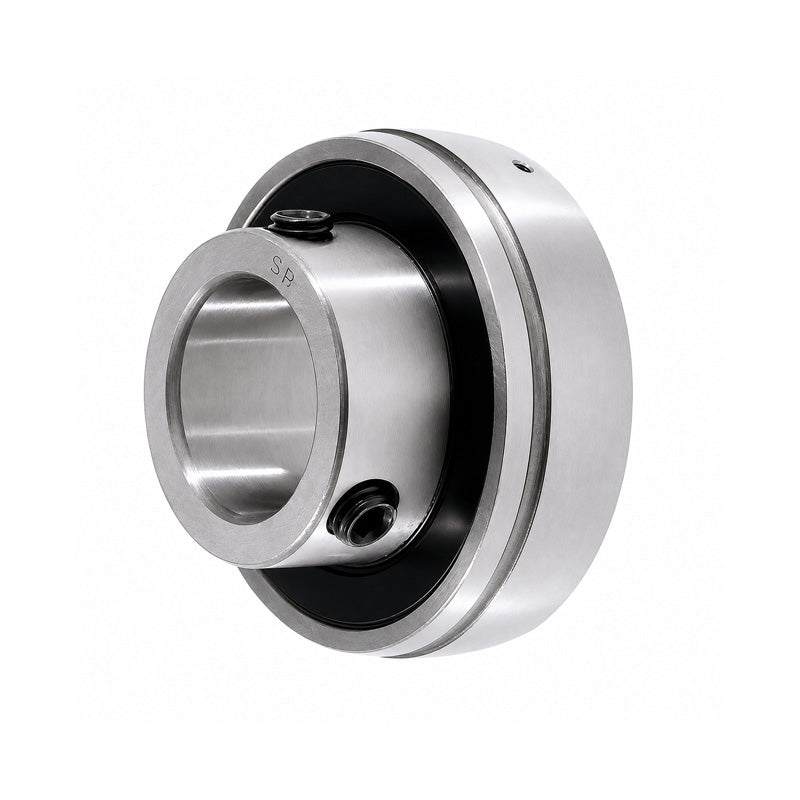

SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
£5.99
ex VAT£7.19inc. VAT
Regular price
Sale price
£5.99
ex VAT£7.19
inc. VAT
In stock
Price Break
3+
£5.33
4+
£5.03
9+
£4.97
19+
£4.91
49+
£4.85
99+
£4.79
499+
£4.49
999+
£4.43
1999+
£4.37
2999+
£4.31
4999+
£4.19
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- SB
Technical
Technical
| d | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
