SKU: SAPP205-16.HMP

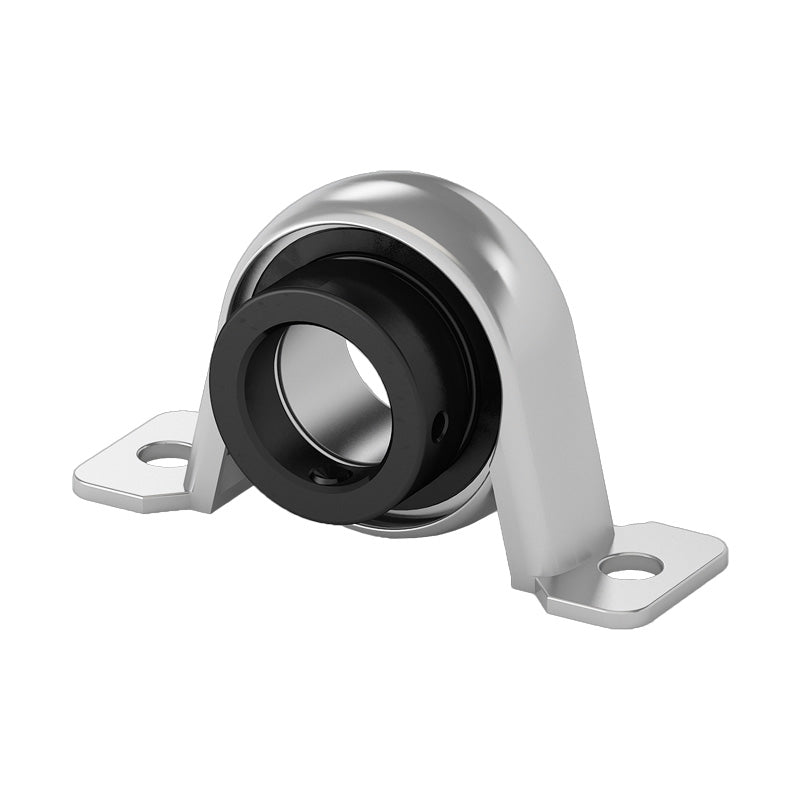

SAPP205-16 Pressed Steel 2 Bolt Plummer Block Housing with 1 inch Collar Insert
SAPP205-16 Pressed Steel 2 Bolt Plummer Block Housing with 1 inch Collar Insert
Regular price
£7.79
ex VAT£9.35inc. VAT
Regular price
Sale price
£7.79
ex VAT£9.35
inc. VAT
Equivalent to: LPB1EC
In stock
Price Break
3+
£6.93
4+
£6.54
9+
£6.47
19+
£6.39
49+
£6.31
99+
£6.23
499+
£5.84
999+
£5.76
1999+
£5.69
2999+
£5.61
4999+
£5.45
Description
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing |
Equivalent: LPB1EC
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SAPP
- Bolt Hole Centres:
- 86mm
Technical
Technical
| d | 1 inch |
|---|---|
| h | 28.6mm |
| L | 108mm |
| e | 86mm |
| b | 32mm |
| s | 11.5mm |
| g | 4mm |
| w | 56.6mm |
| B1 | 31mm |
| n | 7.5mm |
| Bolt | 3/8 inch |
| Weight | 0.32 kg |
| Dynamic load | 1100 N |
| Static load | 710 N |
