SKU: SAPFT206-19.TRI

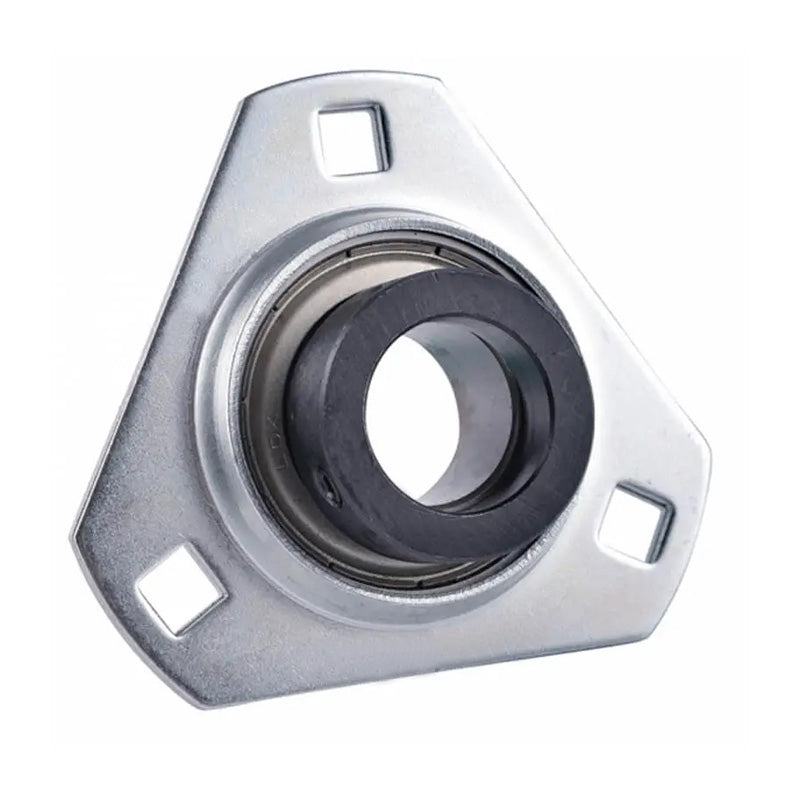

SAPFT206-19 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/16 inch Collar Insert
SAPFT206-19 Pressed Steel 3 Bolt Triangle Flange Housing with 1-3/16 inch Collar Insert
Regular price
£13.42
ex VAT£16.10inc. VAT
Regular price
Sale price
£13.42
ex VAT£16.10
inc. VAT
Equivalent to: SLFT1-3/16EC
In stock
Price Break
3+
£11.95
4+
£11.28
9+
£11.14
19+
£11.01
49+
£10.87
99+
£10.74
499+
£10.07
999+
£9.93
1999+
£9.80
2999+
£9.66
4999+
£9.40
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing |
Equivalent: SLFT1-3/16EC
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SAPFT
- Pitch Circle Diameter:
- 90.5mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| w | 40mm |
| m | 18mm |
| s | 11mm |
| t | 5.2mm |
| f | 71mm |
| B | 35.7mm |
| n | 9mm |
| Bolt | M10 |
| Weight | 0.58 kg |
| Dynamic load | 1520 N |
| Static load | 1020 N |
