SKU: SALKB20F-SKF

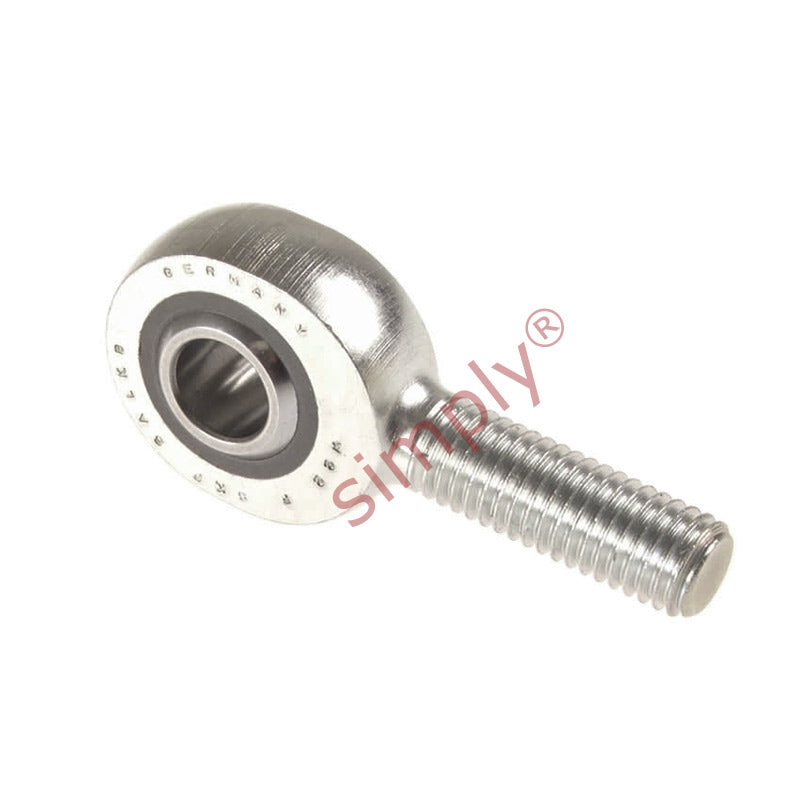

SKF SALKB20F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
SKF SALKB20F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
Regular price
£107.98
ex VAT£129.58inc. VAT
Regular price
Sale price
£107.98
ex VAT£129.58
inc. VAT
Equivalent to: MSL-M20
In stock
Price Break
10+
£96.11
19+
£90.71
29+
£89.63
39+
£88.55
49+
£87.47
74+
£86.39
99+
£80.99
199+
£79.91
249+
£78.83
499+
£77.75
999+
£75.59
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M20
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h | 78mm |
| a | 14deg |
| Dynamic load C | 31 kN |
| Static load Co | 50 kN |
| Weight | 0.37 kg |
| dk | 34.9mm |
| l1 min | 45mm |
| l2 max | 106mm |
| r1 min | 0.3mm |
