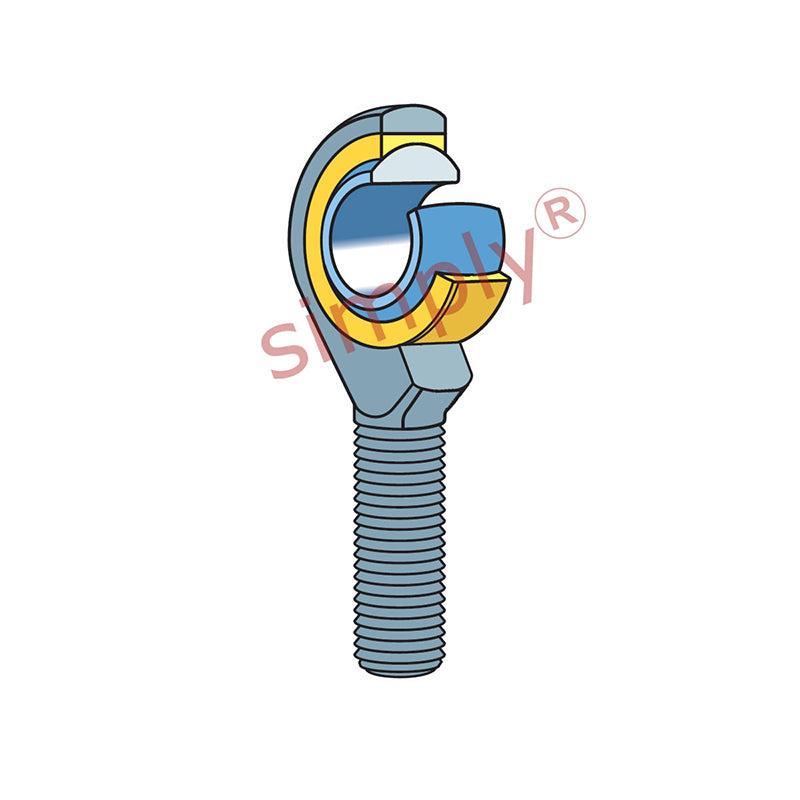

SKF SALKAC5M Left Hand Steel / Bronze Lined Plain Male Rod End M5 Thread

Name: SKF SALKAC5M Left Hand Steel / Bronze Lined Plain Male Rod End M5 Thread
Brand: SKF
SKU: SALKAC5M-SKF
Price: 53.80 GBP
Availability: InStock

£53.80 ex VAT£64.56inc. VAT

£53.80 ex VAT£64.56 inc. VAT

Sale Sold out

Equivalent to: POS5L MBL-M05

In stock

Price Break

10+ £47.88

19+ £45.19

29+ £44.65

39+ £44.11

49+ £43.58

74+ £43.04

99+ £40.35

199+ £39.81

249+ £39.27

499+ £38.73

999+ £37.66

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF SAKAC..M Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against bronze these rod end bearings are unsealed and although classed as maintenance free may require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head this will serve to extend it's life cycle. The exception is the SAKAC5M size which has no lubrication point and will need to be lubricated from the sides of the ball. Sizes 5-12 are manufactured from free machining steel 9 SMnPb28K zinc coated and chromatized and bronze, sizes 14-30 are manufactured from heat treatable C35N Steel zinc coated and chromatized and bronze and will operate within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings.
Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur.
Benefits: Maintenance free, Steel / Bronze

Equivalent: POS5L MBL-M05

Brand / Quality:: SKF - High Quality
Thread Size:: M5
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 5mm
Material:: Bronze Lined

Technical

d	5mm
d2 max	19mm
G	M5
B	8mm
C1 max	7.5mm
h1	33mm
a	13deg
Dynamic load C	3.25 kN
Static load Co	4.8 kN
Weight	0.013 kg
dk	11.1mm
l1 min	19mm
l2 max	44mm
r1 min	0.3mm
