SKU: SALF206-18

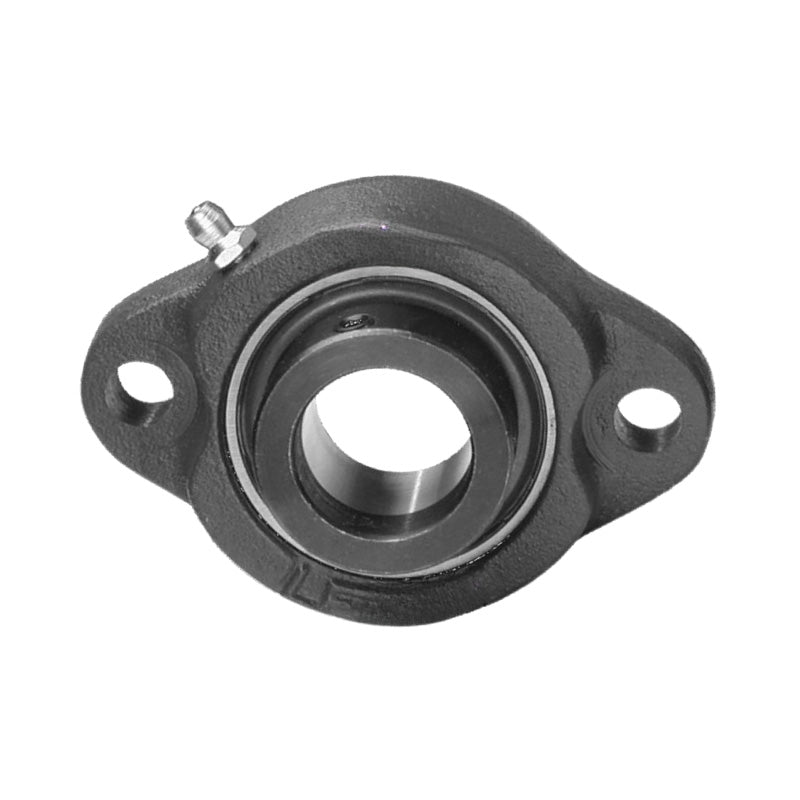

SALF206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore Eccentric Collar Insert
SALF206-18 Imperial Two Bolt Cast Iron Oval Housing with 1-1/8 inch Bore Eccentric Collar Insert
Regular price
£16.55
ex VAT£19.86inc. VAT
Regular price
Sale price
£16.55
ex VAT£19.86
inc. VAT
In stock
Price Break
3+
£14.73
4+
£13.91
9+
£13.74
19+
£13.57
49+
£13.41
99+
£13.24
499+
£12.42
999+
£12.25
1999+
£12.08
2999+
£11.92
4999+
£11.59
Description
Description
|
SALF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SALF
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 76mm |
| i | 12mm |
| s | 12mm |
| g | 12mm |
| l | 22.5mm |
| Bolt | M10 |
| Z | 38.7mm |
| B | 35.7mm |
| n | 9mm |
| Weight | 0.7 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
