SKU: SAL35TXE-2LS-SKF

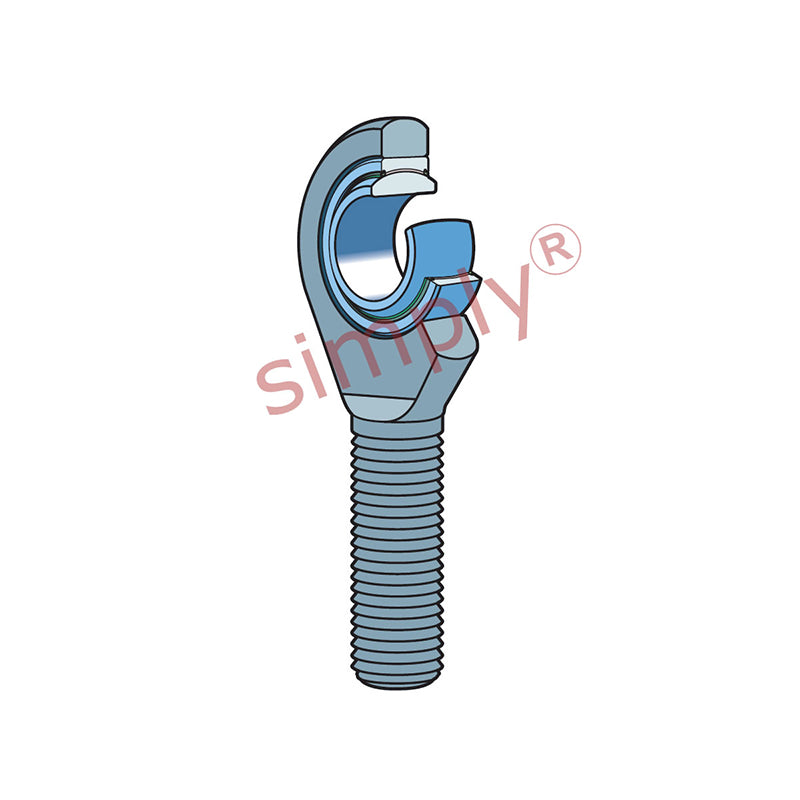

SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
Regular price
£150.58
ex VAT£180.70inc. VAT
Regular price
Sale price
£150.58
ex VAT£180.70
inc. VAT
In stock
Price Break
10+
£134.02
19+
£126.49
29+
£124.98
39+
£123.47
49+
£121.97
74+
£120.46
99+
£112.93
199+
£111.43
249+
£109.92
499+
£108.42
999+
£105.41
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 35mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 35mm |
|---|---|
| d2 max | 84mm |
| G | M36x3 |
| B | 25mm |
| C1 max | 22mm |
| h | 130mm |
| a | 6deg |
| Dynamic load C | 224 kN |
| Static load Co | 110 kN |
| Weight | 1.3 kg |
| dk | 47mm |
| l1 min | 82mm |
| l2 max | 174mm |
| l7 min | 40mm |
| r1 min | 0.6mm |
