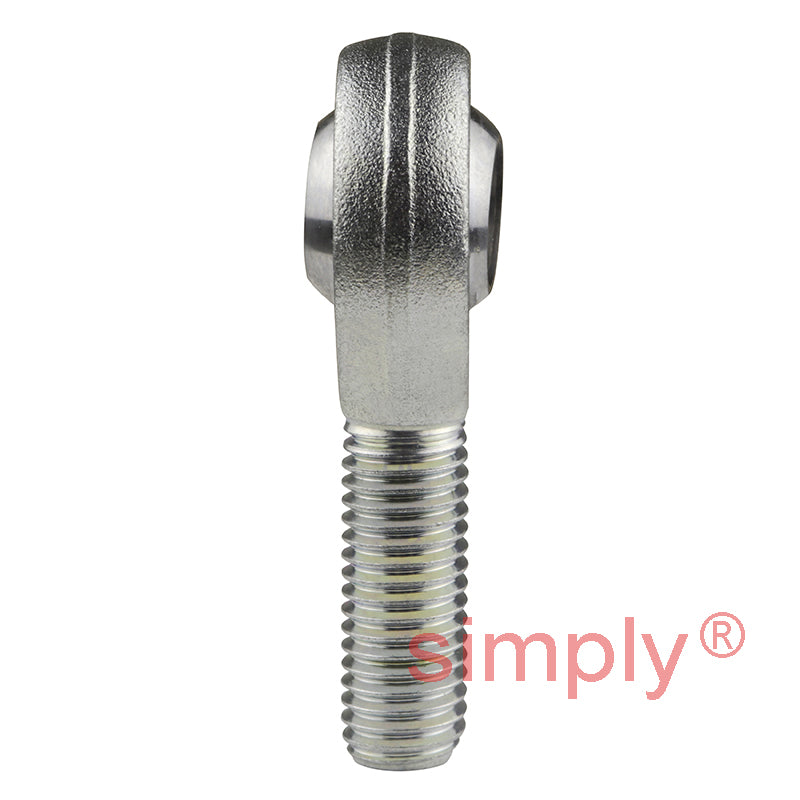

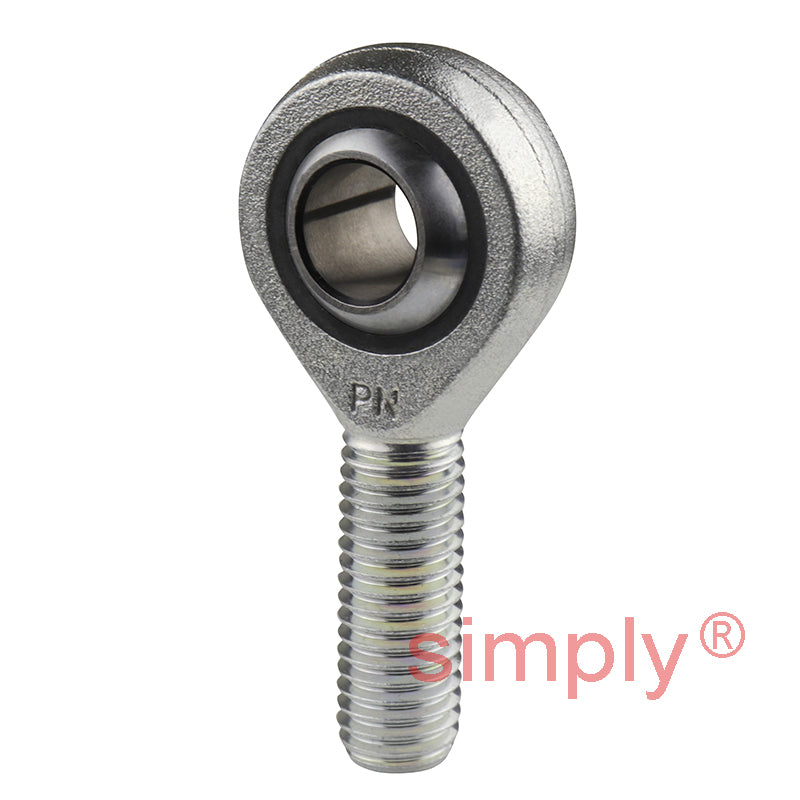

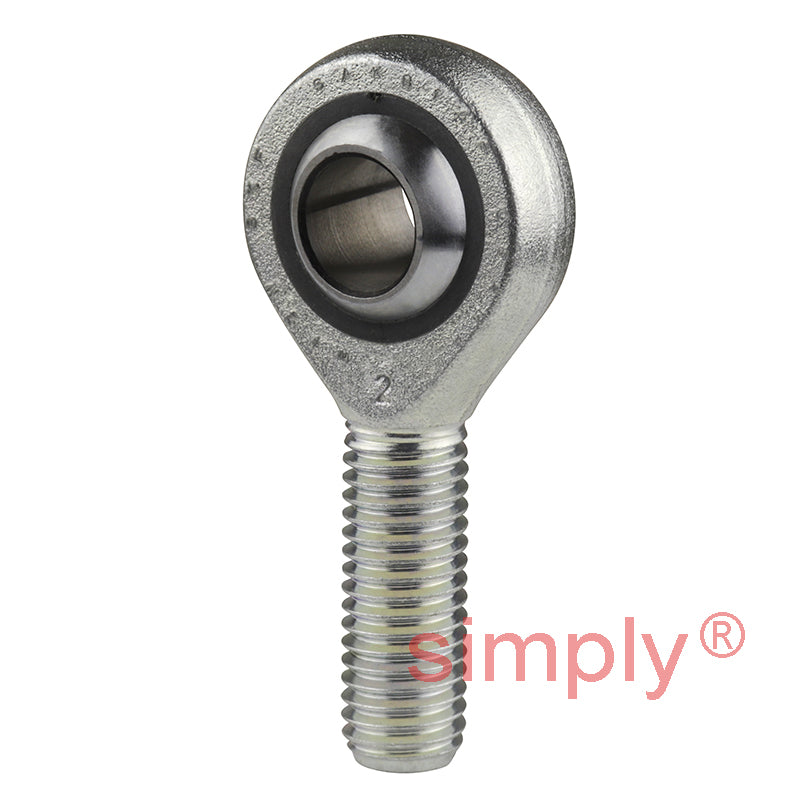

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
Regular price
£68.10
ex VAT£81.72inc. VAT
Regular price
Sale price
£68.10
ex VAT£81.72
inc. VAT
Equivalent to: MS-M14
In stock
Price Break
10+
£60.61
19+
£57.20
29+
£56.52
39+
£55.84
49+
£55.16
74+
£54.48
99+
£51.07
199+
£50.39
249+
£49.71
499+
£49.03
999+
£47.67
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: MS-M14
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h | 60mm |
| a | 16deg |
| Dynamic load C | 17 kN |
| Static load Co | 25.5 kN |
| Weight | 0.13 kg |
| dk | 25.4mm |
| l1 min | 36mm |
| l2 max | 80mm |
| r1 min | 0.3mm |
