SKU: SAFW205

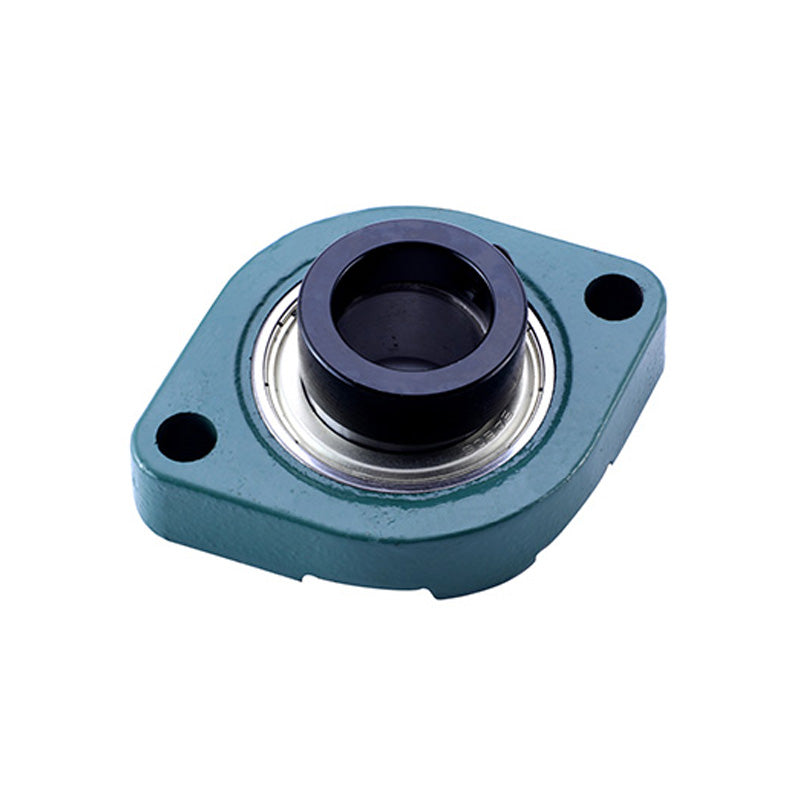

SAFW205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
SAFW205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
Regular price
£18.24
ex VAT£21.89inc. VAT
Regular price
Sale price
£18.24
ex VAT£21.89
inc. VAT
In stock
Price Break
3+
£16.23
4+
£15.32
9+
£15.14
19+
£14.96
49+
£14.77
99+
£14.59
499+
£13.68
999+
£13.50
1999+
£13.31
2999+
£13.13
4999+
£12.77
Description
Description
|
SAFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- SAFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 33mm |
| B1 | 31mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
