SKU: SA17C-SKF

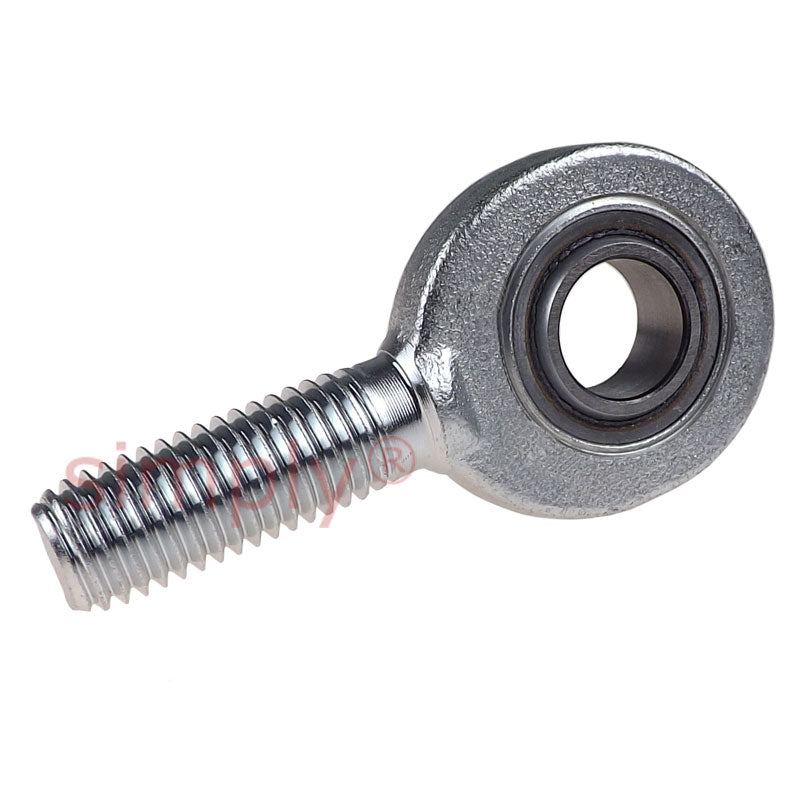

SKF SA17C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
SKF SA17C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
Regular price
£49.69
ex VAT£59.63inc. VAT
Regular price
Sale price
£49.69
ex VAT£59.63
inc. VAT
Equivalent to: GAR17UK FE17U
In stock
Price Break
10+
£44.23
19+
£41.74
29+
£41.24
39+
£40.75
49+
£40.25
74+
£39.75
99+
£37.27
199+
£36.77
249+
£36.28
499+
£35.78
999+
£34.78
Description
Description
|
SKF SA..C Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE sintered bronze these rod end bearings are unsealed. They are manufactured from heat treatable C45V Steel zinc coated and chromatized and PTFE sintered bronze and will operate within -35deg C to +150 deg C, load carrying capacity will be reduced over +80 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE /Bronze |
Equivalent: GAR17UK FE17U
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 17mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 17mm |
|---|---|
| d2 max | 47mm |
| G | M16 |
| B | 14mm |
| C1 max | 11.5mm |
| h | 69mm |
| a | 10deg |
| Dynamic load C | 22.4 kN |
| Static load Co | 42.5 kN |
| Weight | 0.19 kg |
| dk | 25mm |
| l1 min | 36mm |
| l2 max | 94mm |
| l7 min | 22mm |
| r1 min | 0.3mm |
