SKU: S-UCFC213D1-NTN

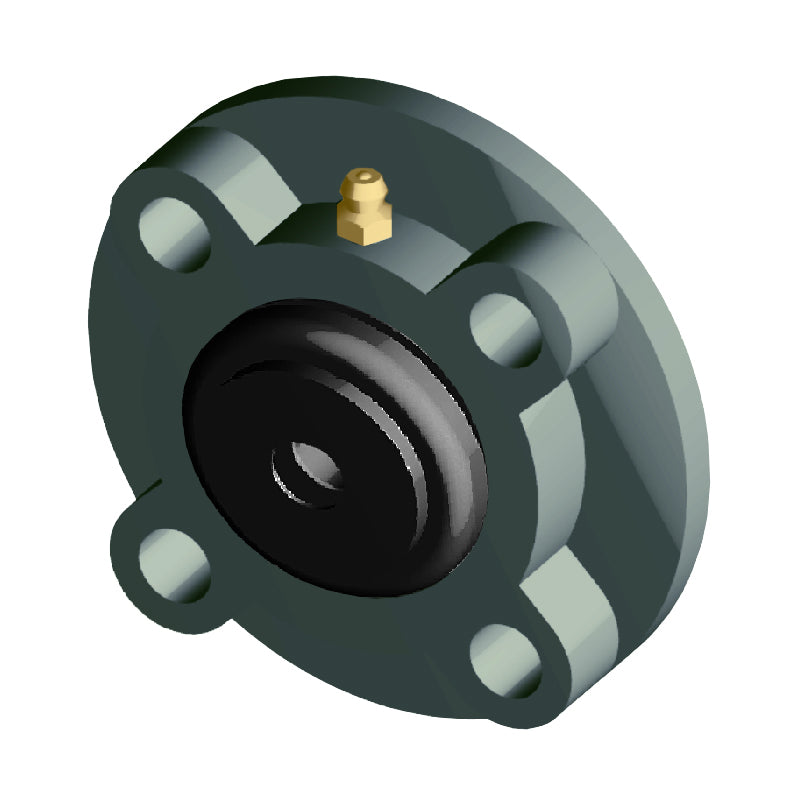

NTN S-UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£133.04
ex VAT£159.65inc. VAT
Regular price
Sale price
£133.04
ex VAT£159.65
inc. VAT
In stock
Price Break
3+
£131.71
4+
£126.39
9+
£123.73
19+
£119.74
49+
£117.08
99+
£110.42
499+
£93.13
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 120.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 205mm |
| J | 170mm |
| (J<sub>1</sub>) | 120.2mm |
| A<sub>2</sub> | 16mm |
| N | 19mm |
| A<sub>3</sub> | 14mm |
| A<sub>1</sub> | 36mm |
| A | 50mm |
| H<sub>3</sub> | 145mm |
| B | 65.1mm |
| S | 25.4mm |
| A<sub>4</sub> | 83.5mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 6 kg |
