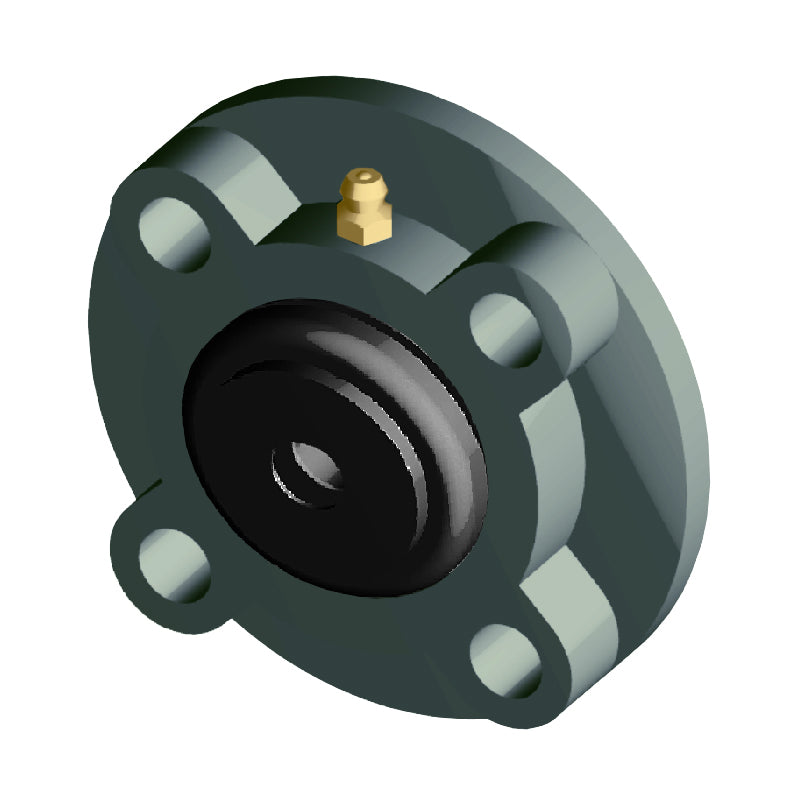

NTN S-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFC212D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£110.86
ex VAT£133.03inc. VAT
Regular price
Sale price
£110.86
ex VAT£133.03
inc. VAT
In stock
Price Break
3+
£109.75
4+
£105.32
9+
£103.10
19+
£99.77
49+
£97.56
99+
£92.01
499+
£77.60
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 113.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 195mm |
| J | 160mm |
| (J<sub>1</sub>) | 113.1mm |
| A<sub>2</sub> | 17mm |
| N | 19mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 36mm |
| A | 48mm |
| H<sub>3</sub> | 135mm |
| B | 65.1mm |
| S | 25.4mm |
| A<sub>4</sub> | 80mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 5.1 kg |
