SKU: RPNA35/52-EU

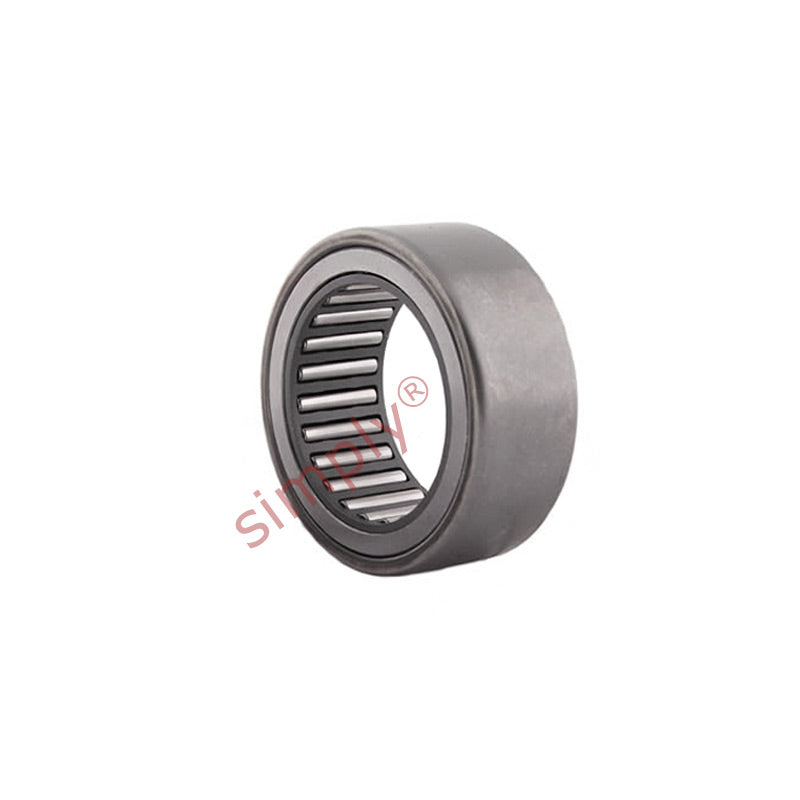

RPNA35/52 Budget Needle Roller Bearing Alignment Type no Inner Race 35x52x20
RPNA35/52 Budget Needle Roller Bearing Alignment Type no Inner Race 35x52x20
Regular price
£41.98
ex VAT£50.38inc. VAT
Regular price
Sale price
£41.98
ex VAT£50.38
inc. VAT
In stock
Price Break
10+
£37.36
19+
£35.26
29+
£34.84
39+
£34.42
49+
£34.00
74+
£33.58
99+
£31.49
199+
£31.07
249+
£30.65
499+
£30.23
999+
£29.39
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load C | 24600 N |
| Static load Co | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| D1 | 47.5mm |
| r min | 1mm |
| Da min | 46.5mm |
| Da max | 47.5mm |
| ra max | 1mm |
| Weight | 130 g |
