SKU: RPNA25/42-EU

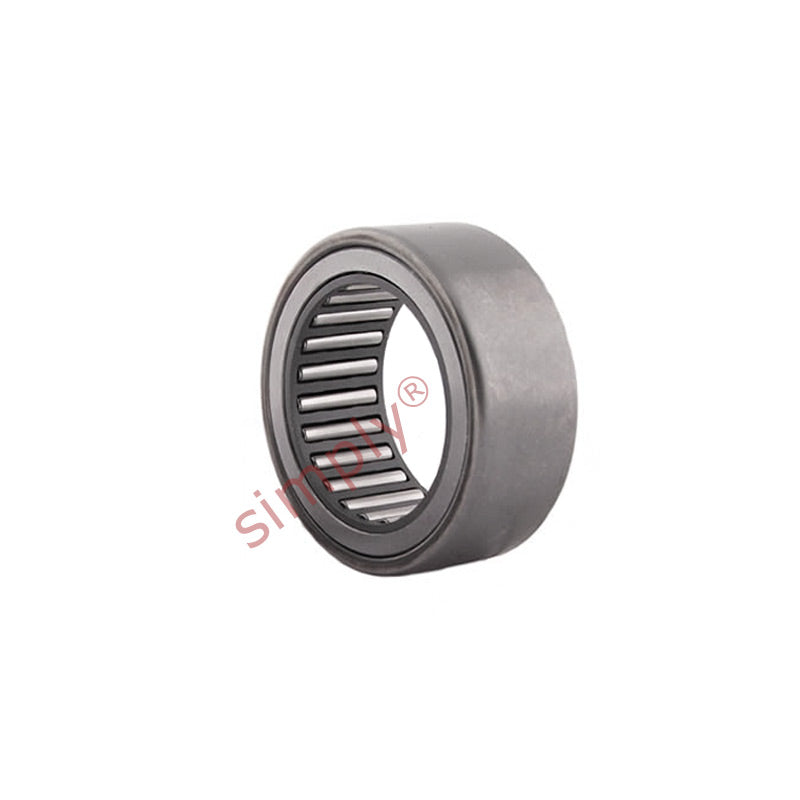

RPNA25/42 Budget Needle Roller Bearing Alignment Type no Inner Race 25x42x20
RPNA25/42 Budget Needle Roller Bearing Alignment Type no Inner Race 25x42x20
Regular price
£17.07
ex VAT£20.48inc. VAT
Regular price
Sale price
£17.07
ex VAT£20.48
inc. VAT
In stock
Price Break
10+
£15.19
19+
£14.34
29+
£14.17
39+
£14.00
49+
£13.83
74+
£13.66
99+
£12.80
199+
£12.63
249+
£12.46
499+
£12.29
999+
£11.95
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| D1 | 36.5mm |
| r min | 1mm |
| Da min | 35mm |
| Da max | 37mm |
| ra max | 1mm |
| Weight | 110 g |
