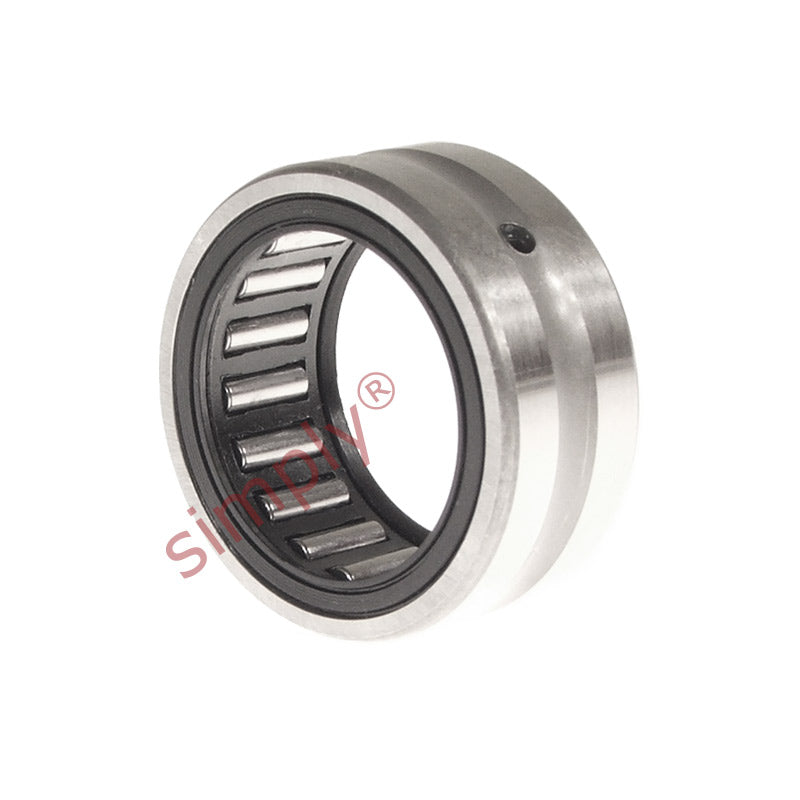

RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
Regular price
£7.50
ex VAT£9.00inc. VAT
Regular price
Sale price
£7.50
ex VAT£9.00
inc. VAT
In stock
Price Break
10+
£6.68
19+
£6.30
29+
£6.23
39+
£6.15
49+
£6.08
74+
£6.00
99+
£5.63
199+
£5.55
249+
£5.48
499+
£5.40
999+
£5.25
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 23mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 28mm |
| C | 23mm |
| Dynamic load C | 17200 N |
| Static load Co | 27000 N |
| Fatigue load limit Pu | 3400 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Seal | G/SD20x28x4 |
| Weight | 40 g |
