SKU: RNA69/32-MB

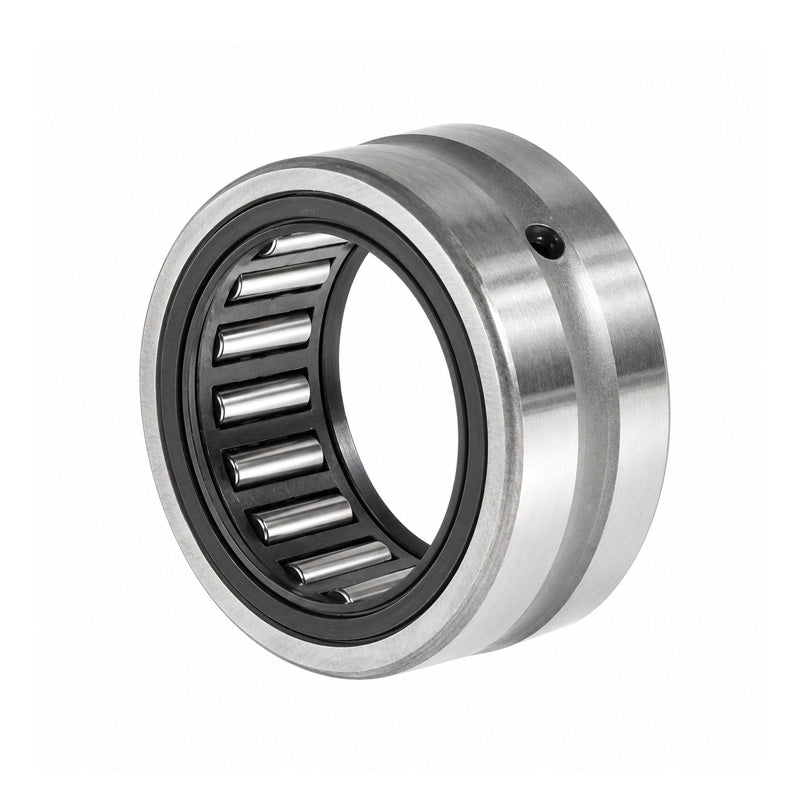

Major Brand RNA69/32 Needle Roller Bearing With Flanges without Shaft Sleeve 40x52x36mm
Major Brand RNA69/32 Needle Roller Bearing With Flanges without Shaft Sleeve 40x52x36mm
Regular price
£42.76
ex VAT£51.31inc. VAT
Regular price
Sale price
£42.76
ex VAT£51.31
inc. VAT
In stock
Price Break
10+
£38.06
19+
£35.92
29+
£35.49
39+
£35.06
49+
£34.64
74+
£34.21
99+
£32.07
199+
£31.64
249+
£31.21
499+
£30.79
999+
£29.93
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 36mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 36mm |
| Dynamic load | 47300 N |
| Static load | 90000 N |
| Fatigue load limit Pu | 11200 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| r1r2 | 0.6mm |
| Da max | 48mm |
| ra max | 0.6mm |
| Seal | G/SD40x52x5 |
| Weight | 160 g |
