SKU: RNA69/22-EU

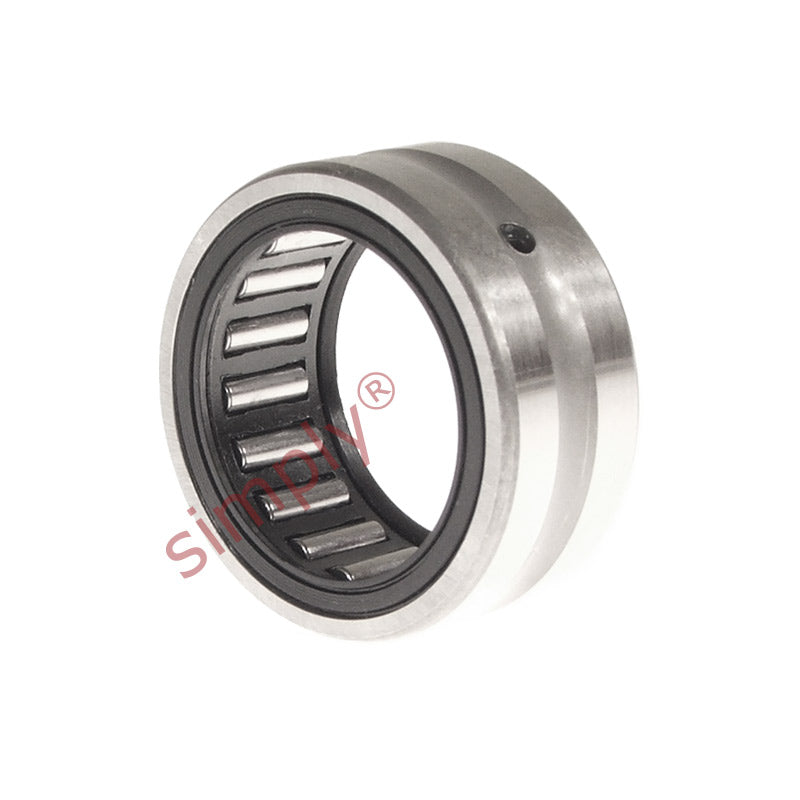

RNA69/22 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 28x39x30mm
RNA69/22 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 28x39x30mm
Regular price
£24.25
ex VAT£29.10inc. VAT
Regular price
Sale price
£24.25
ex VAT£29.10
inc. VAT
In stock
Price Break
10+
£21.58
19+
£20.37
29+
£20.12
39+
£19.88
49+
£19.64
74+
£19.40
99+
£18.18
199+
£17.94
249+
£17.70
499+
£17.46
999+
£16.97
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 39mm
- Width:
- 30mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 39mm |
| C | 30mm |
| Dynamic load C | 36900 N |
| Static load Co | 57000 N |
| Fatigue load limit Pu | 7500 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 | 0.3mm |
| Da max | 37mm |
| ra max | 0.3mm |
| Weight | 98 g |
