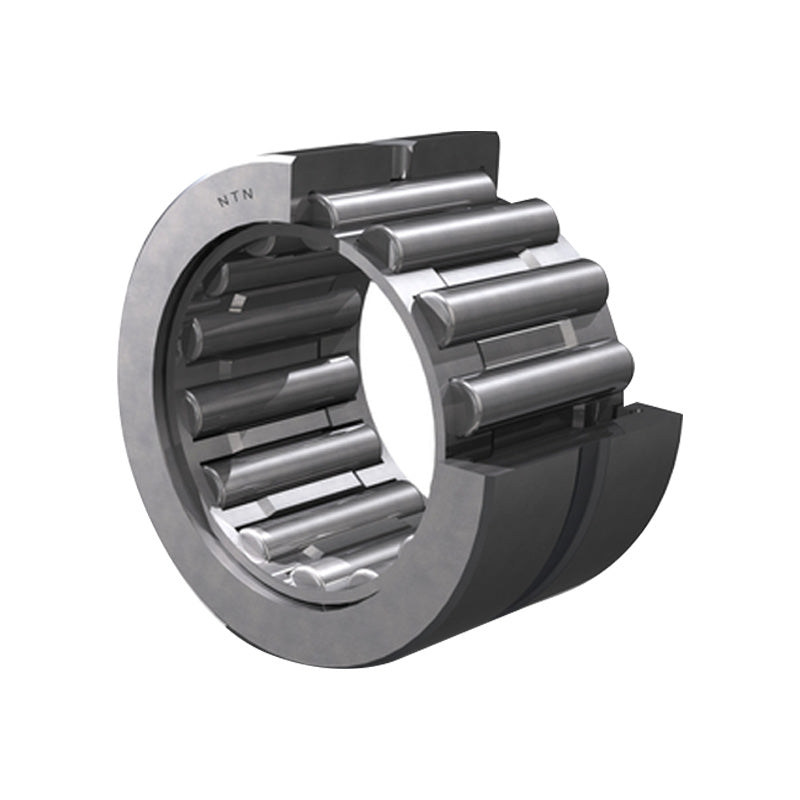

NTN RNA496 Machined Needle Roller Bearing no Shaft Sleeve 8x15x10mm - Allow 2-3 Days

NTN RNA496 Machined Needle Roller Bearing no Shaft Sleeve 8x15x10mm - Allow 2-3 Days
Regular price £13.27 ex VAT£15.92inc. VAT
Regular price Sale price £13.27 ex VAT£15.92 inc. VAT
Sale Sold out

In stock

Price Break
3+ £13.14
4+ £12.61
9+ £12.34
19+ £11.94
49+ £11.68
99+ £11.01
499+ £9.29
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 8mm
D - Outside diameter 15mm
C - Width of bearing, drawn cup or outer ring 10mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 3.15 kN
C0r - Static load rating 3 kN
N - Grease lubrication limit speed 21000 tr/min
N - Oil lubrication limit speed 32000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 9.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
