SKU: RNA4952-NTN

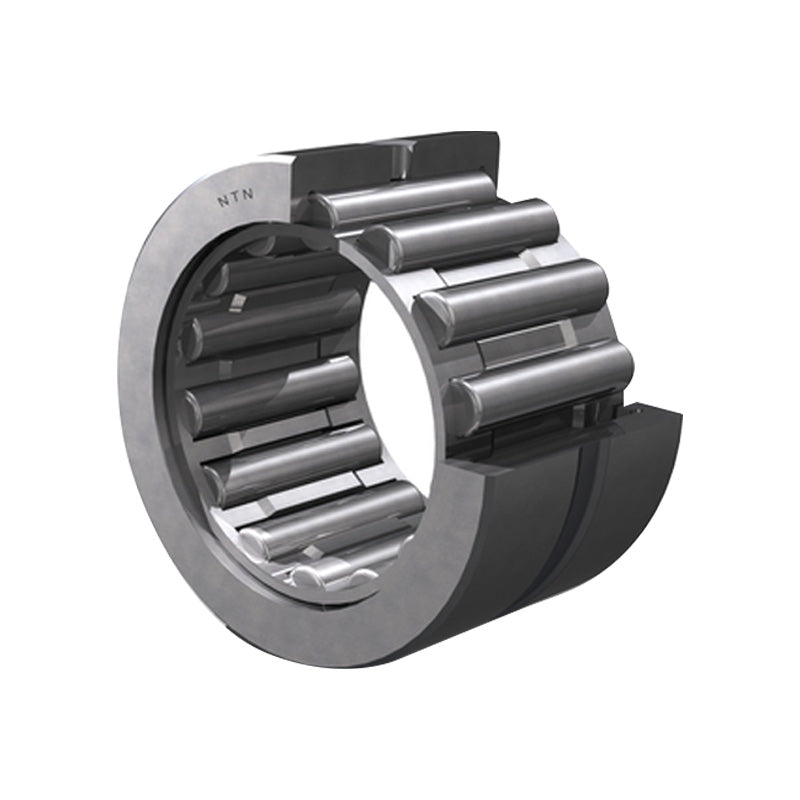

NTN RNA4952 Machined Needle Roller Bearing no Shaft Sleeve 290x360x100mm - Allow 2-3 Days

NTN RNA4952 Machined Needle Roller Bearing no Shaft Sleeve 290x360x100mm - Allow 2-3 Days
Regular price £3,724.66 ex VAT£4,469.59inc. VAT
Regular price Sale price £3,724.66 ex VAT£4,469.59 inc. VAT
Sale Sold out

In stock

Price Break
3+ £3,538.43
4+ £3,352.19
9+ £3,165.96
19+ £2,979.73
49+ £2,905.23
99+ £2,830.74
499+ £2,458.28
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 290mm
D - Outside diameter 360mm
C - Width of bearing, drawn cup or outer ring 100mm
rs - Minimum fillet radius 2.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 805 kN
C0r - Static load rating 1900 kN
N - Grease lubrication limit speed 950 tr/min
N - Oil lubrication limit speed 1400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 349mm
ras max - Maximum shaft & housing fillet radius 2mm
