SKU: RNA4922-NTN

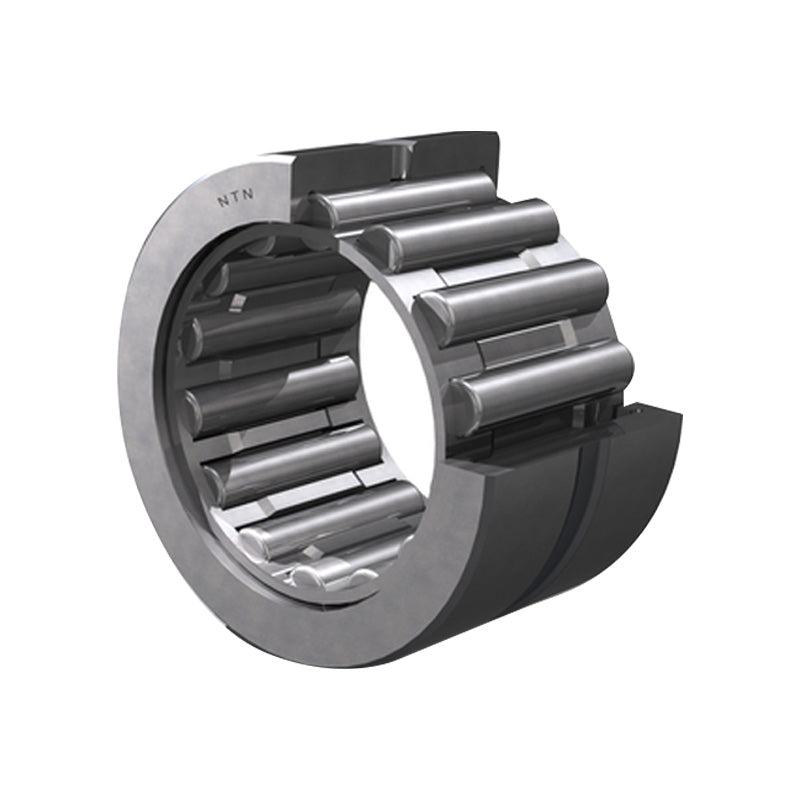

NTN RNA4922 Machined Needle Roller Bearing no Shaft Sleeve 125x150x40mm - Allow 2-3 Days

NTN RNA4922 Machined Needle Roller Bearing no Shaft Sleeve 125x150x40mm - Allow 2-3 Days
Regular price £155.09 ex VAT£186.11inc. VAT
Regular price Sale price £155.09 ex VAT£186.11 inc. VAT
Sale Sold out

In stock

Price Break
3+ £153.54
4+ £147.34
9+ £144.23
19+ £139.58
49+ £136.48
99+ £128.72
499+ £108.56
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 125mm
D - Outside diameter 150mm
C - Width of bearing, drawn cup or outer ring 40mm
rs - Minimum fillet radius 1.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 131 kN
C0r - Static load rating 279 kN
N - Grease lubrication limit speed 2100 tr/min
N - Oil lubrication limit speed 3200 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 143.5mm
ras max - Maximum shaft & housing fillet radius 1mm
