SKU: RNA4917-EU

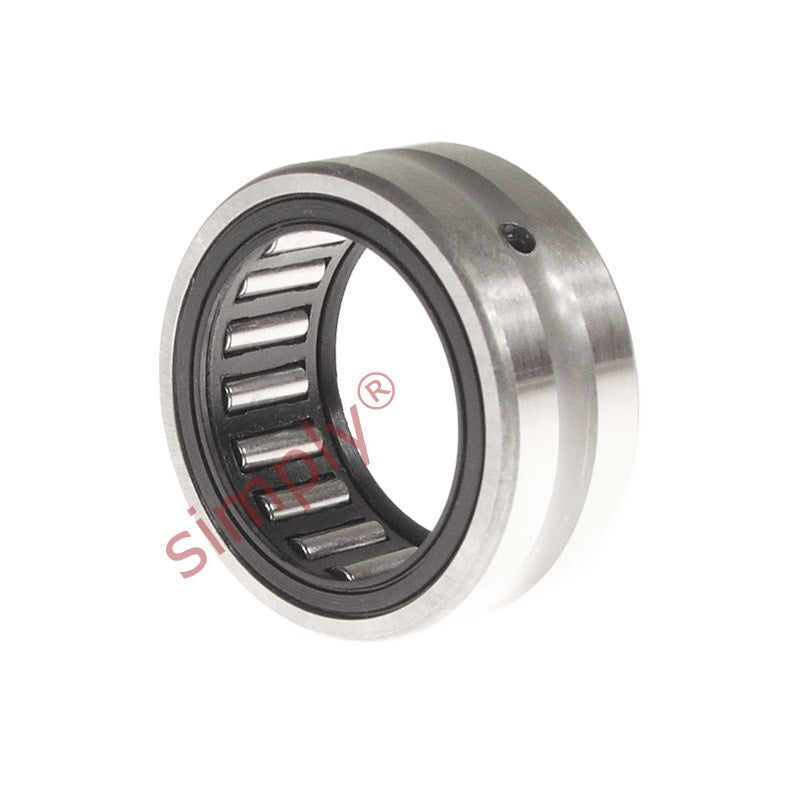

RNA4917 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 100x120x35mm
RNA4917 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 100x120x35mm
Regular price
£19.29
ex VAT£23.15inc. VAT
Regular price
Sale price
£19.29
ex VAT£23.15
inc. VAT
In stock
Price Break
10+
£17.17
19+
£16.20
29+
£16.01
39+
£15.82
49+
£15.62
74+
£15.43
99+
£14.47
199+
£14.27
249+
£14.08
499+
£13.89
999+
£13.50
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 120mm
- Width:
- 35mm
Technical
Technical
| Fw | 100mm |
|---|---|
| D | 120mm |
| C | 35mm |
| Dynamic load C | 108000 N |
| Static load Co | 250000 N |
| Fatigue load limit Pu | 32000 N |
| Speed in grease | 2800 rpm |
| Speed in oil | 4000 rpm |
| r1r2 | 1.1mm |
| Da max | 113.5mm |
| ra max | 1mm |
| Seal | CR100x120x12CRW1R |
| Weight | 660 g |
