SKU: RNA4902-EU

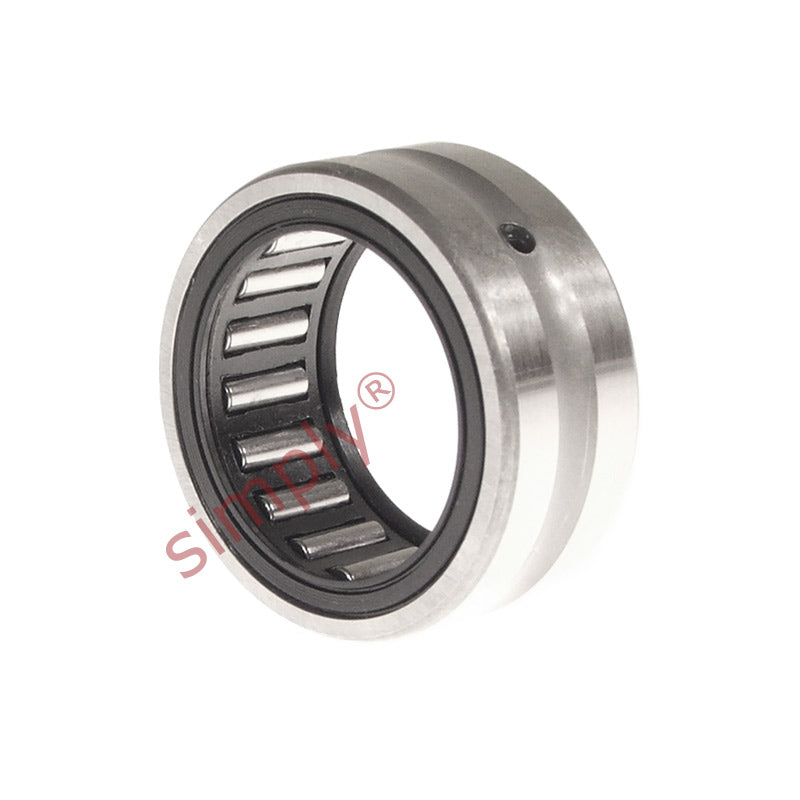

RNA4902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x13mm
RNA4902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x13mm
Regular price
£11.56
ex VAT£13.87inc. VAT
Regular price
Sale price
£11.56
ex VAT£13.87
inc. VAT
In stock
Price Break
10+
£10.29
19+
£9.71
29+
£9.60
39+
£9.48
49+
£9.37
74+
£9.25
99+
£8.67
199+
£8.56
249+
£8.44
499+
£8.33
999+
£8.09
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 13mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 28mm |
| C | 13mm |
| Dynamic load C | 11200 N |
| Static load Co | 15300 N |
| Fatigue load limit Pu | 1830 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Seal | G/SD20x28x4 |
| Weight | 22 g |
