SKU: RNA4901-MB

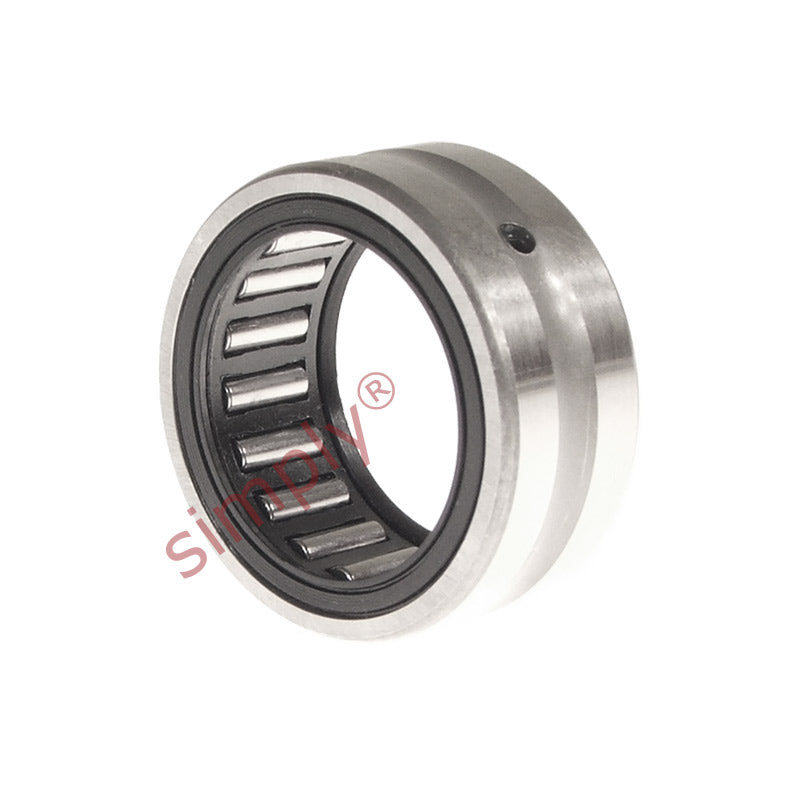

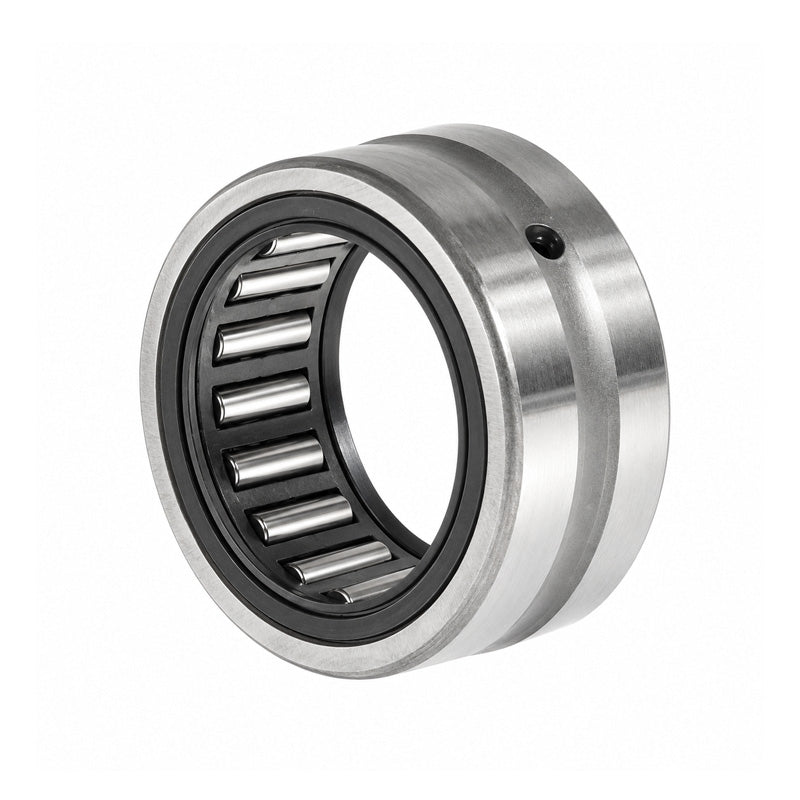

Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Regular price
£13.54
ex VAT£16.25inc. VAT
Regular price
Sale price
£13.54
ex VAT£16.25
inc. VAT
In stock
Price Break
10+
£12.05
19+
£11.37
29+
£11.24
39+
£11.10
49+
£10.97
74+
£10.83
99+
£10.16
199+
£10.02
249+
£9.88
499+
£9.75
999+
£9.48
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 13mm |
| Dynamic load | 9900 N |
| Static load | 12200 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 17 g |
