SKU: RNA4832-NTN

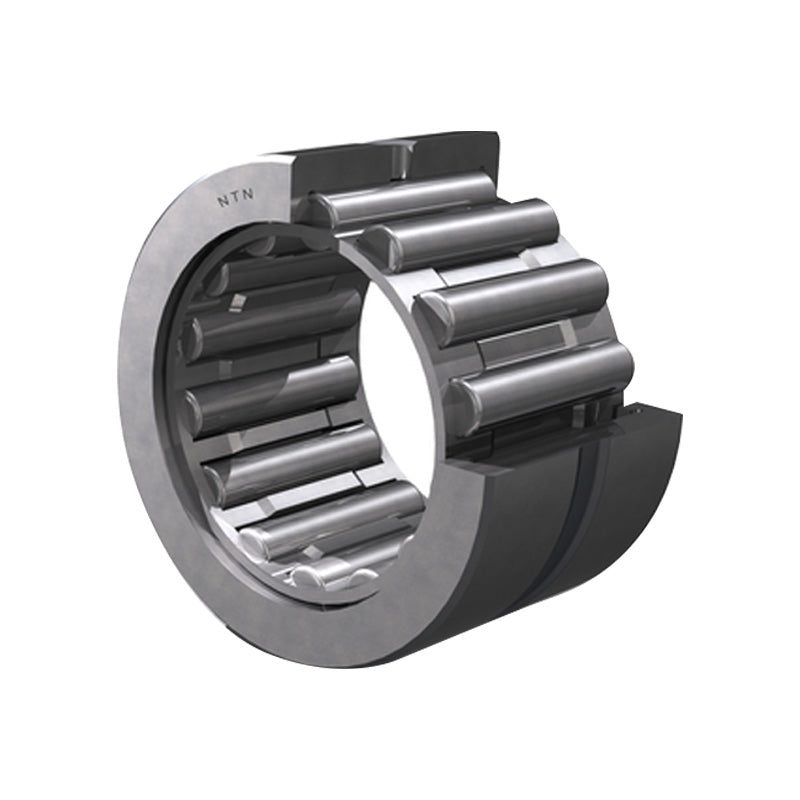

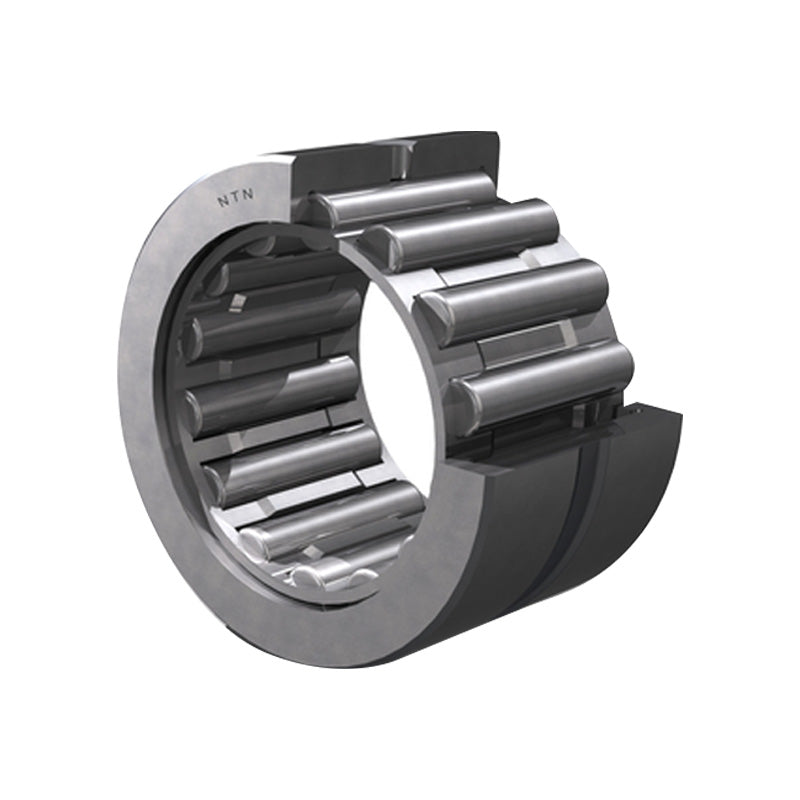

NTN RNA4832 Machined Needle Roller Bearing no Shaft Sleeve 175x200x40mm - Allow 2-3 Days

NTN RNA4832 Machined Needle Roller Bearing no Shaft Sleeve 175x200x40mm - Allow 2-3 Days
Regular price £310.30 ex VAT£372.36inc. VAT
Regular price Sale price £310.30 ex VAT£372.36 inc. VAT
Sale Sold out

In stock

Price Break
3+ £307.20
4+ £294.79
9+ £288.58
19+ £279.27
49+ £273.06
99+ £257.55
499+ £217.21
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 175mm
D - Outside diameter 200mm
C - Width of bearing, drawn cup or outer ring 40mm
rs - Minimum fillet radius 1.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 160 kN
C0r - Static load rating 452 kN
N - Grease lubrication limit speed 1500 tr/min
N - Oil lubrication limit speed 2300 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 193.5mm
ras max - Maximum shaft & housing fillet radius 1mm
