SKU: RNA4822-NTN

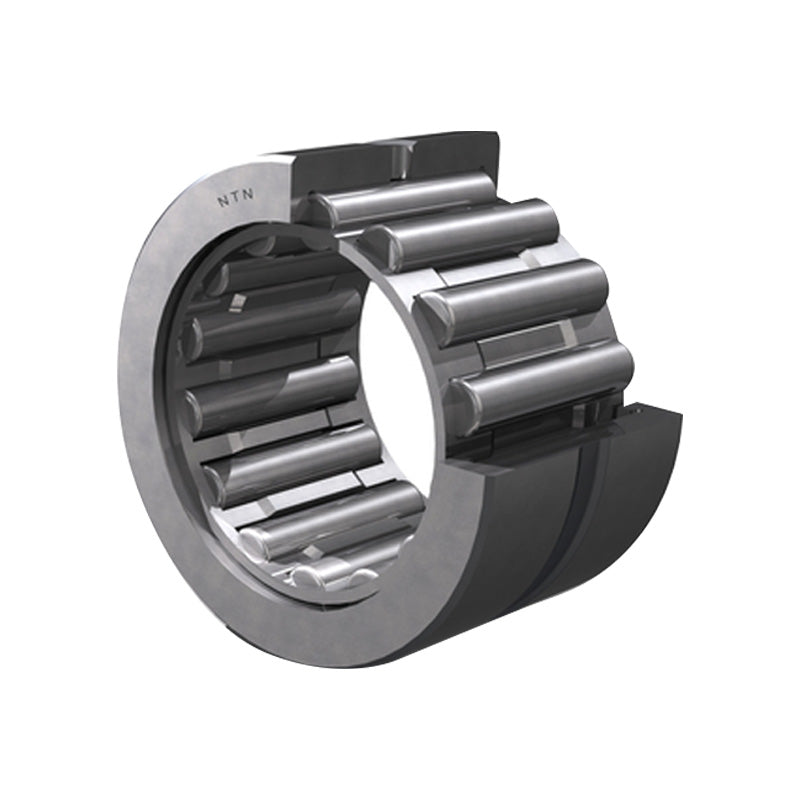

NTN RNA4822 Machined Needle Roller Bearing no Shaft Sleeve 120x140x30mm - Allow 2-3 Days

NTN RNA4822 Machined Needle Roller Bearing no Shaft Sleeve 120x140x30mm - Allow 2-3 Days
Regular price £177.34 ex VAT£212.81inc. VAT
Regular price Sale price £177.34 ex VAT£212.81 inc. VAT
Sale Sold out

In stock

Price Break
3+ £175.57
4+ £168.47
9+ £164.93
19+ £159.61
49+ £156.06
99+ £147.19
499+ £124.14
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 120mm
D - Outside diameter 140mm
C - Width of bearing, drawn cup or outer ring 30mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 93.5 kN
C0r - Static load rating 210 kN
N - Grease lubrication limit speed 2200 tr/min
N - Oil lubrication limit speed 3300 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 135mm
ras max - Maximum shaft & housing fillet radius 1mm
