SKU: RM30HF-MB

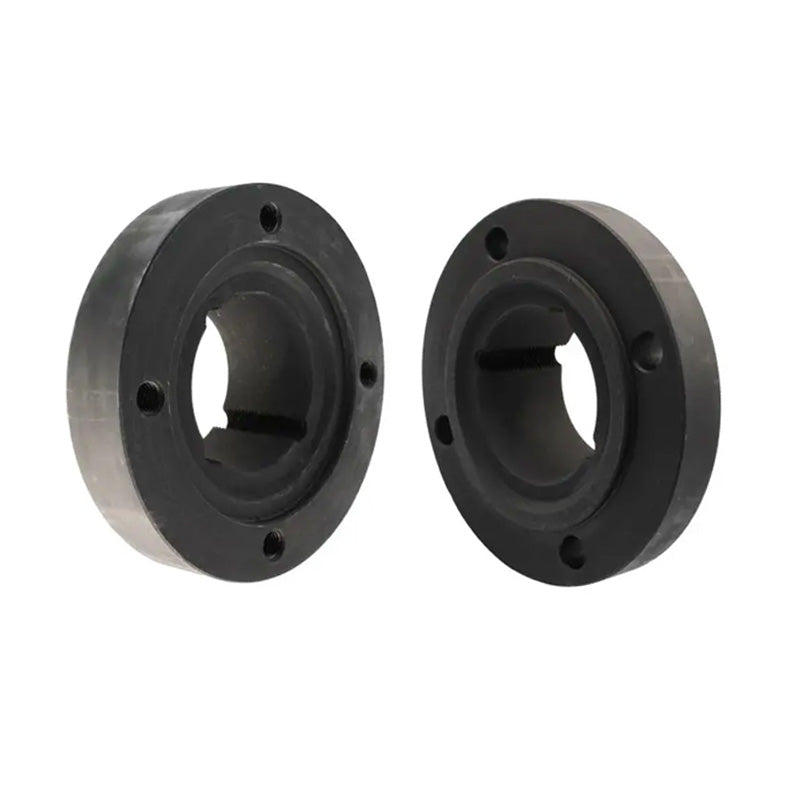

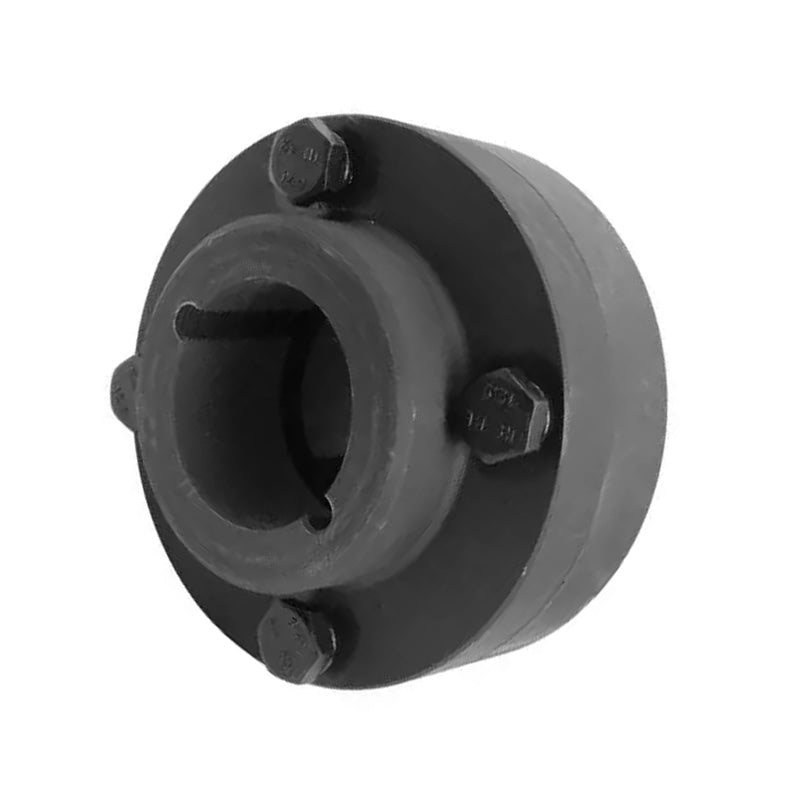

Major Brand RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch
Major Brand RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch
Regular price
£199.43
ex VAT£239.32inc. VAT
Regular price
Sale price
£199.43
ex VAT£239.32
inc. VAT
Equivalent to: RM30HF-3020
In stock
Price Break
10+
£177.49
19+
£167.52
29+
£165.53
39+
£163.53
49+
£161.54
74+
£159.54
99+
£149.57
199+
£147.58
249+
£145.58
499+
£143.59
999+
£139.60
Description
Description
Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Equivalent: RM30HF-3020
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 75mm or 3 inch
Technical
Technical
| Bush | 3020<a href="advanced_search_result.php?keywords=taper+lock+bush+3020"> [Click Here]</a> |
|---|---|
| Max Bore Size | 75mm |
| Inch | 3 inch |
| A | 216mm |
| C | 65mm |
| D | 146mm |
| E | 51mm |
| F Nominal | 152mm |
| G Nominal | 181mm |
| H ♣ | 7mm |
| J ♠ | 54mm |
| L | 109mm |
| Mass ♥ | 20kg |
