SKU: RCK15-25x65

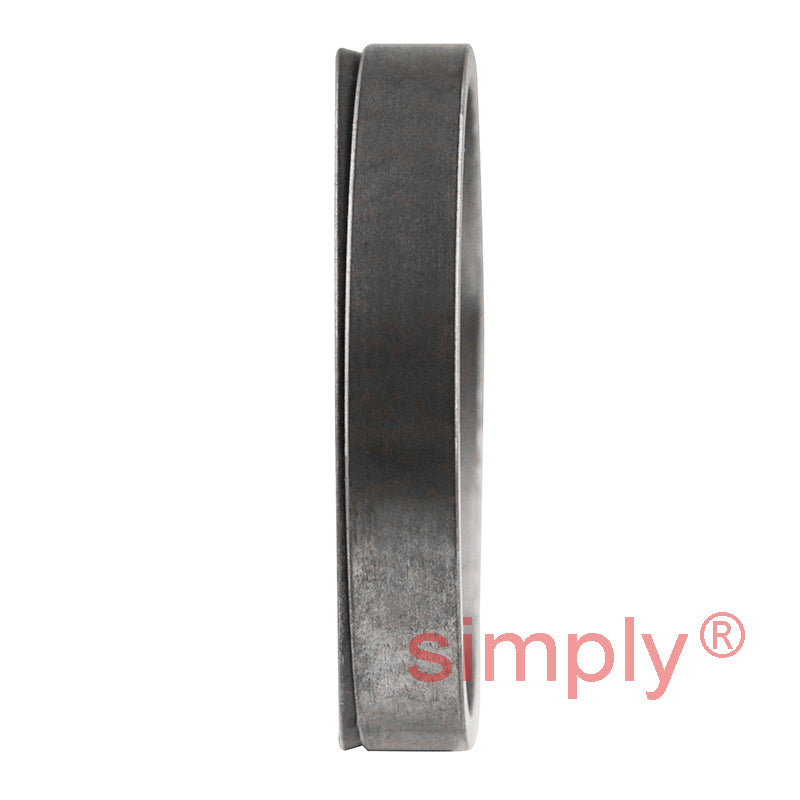

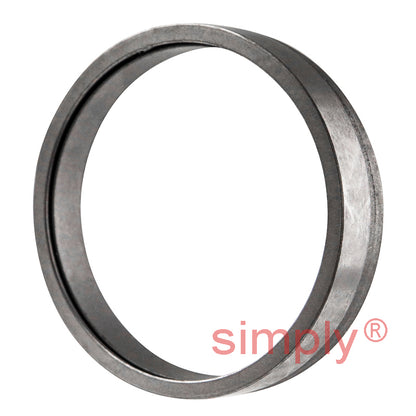

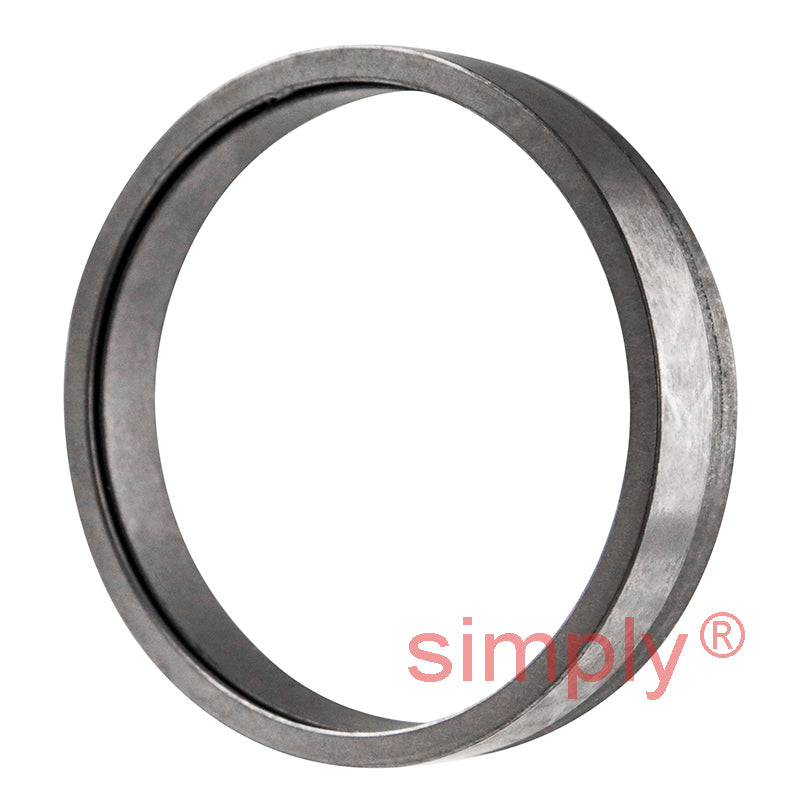

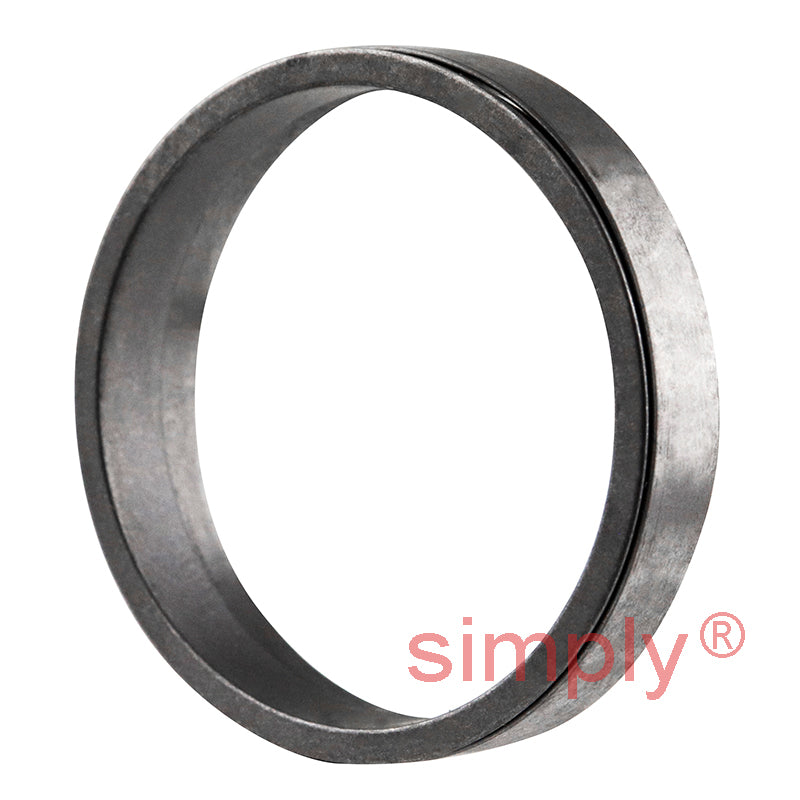

RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
Regular price
£14.79
ex VAT£17.75inc. VAT
Regular price
Sale price
£14.79
ex VAT£17.75
inc. VAT
In stock
Price Break
10+
£13.16
19+
£12.42
29+
£12.28
39+
£12.13
49+
£11.98
74+
£11.83
99+
£11.09
199+
£10.94
249+
£10.80
499+
£10.65
999+
£10.35
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- Cross & Morse - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 65mm
- Width:
- 39mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 65mm |
| L | 39mm |
| L<sub>1</sub> | 17mm |
| L<sub>2</sub> | 22mm |
| L<sub>3</sub> | 31mm |
| X | 25mm |
| Torque Cap. M Nm | 637 |
| Axial Force F kN | 51 |
| Shaft Ps N/mm<sup>2</sup> | 320 |
| Hub Ph N/mm<sup>2</sup> | 122 |
| M8 | M8 |
| Clamping Screws Torque Nm | 41 |
| Kg | 0.63 |
| Min. Hub Dia. Assy. A | 97 |
| Min. Hub Dia. Assy. B | 89 |
| Min. Hub Dia. Assy. C | 82 |
