SKU: RAXZ545-MB

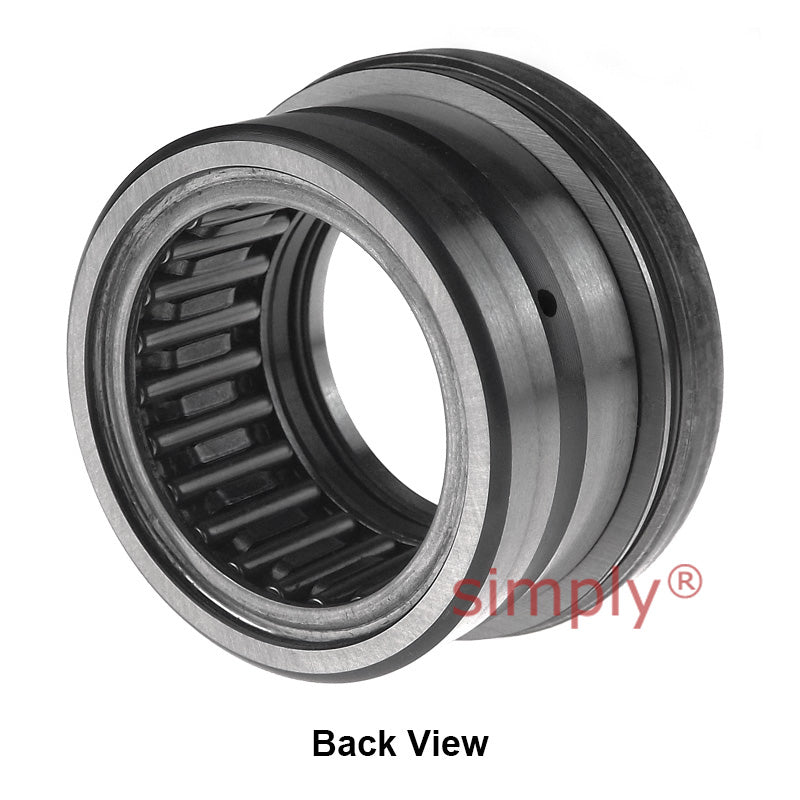

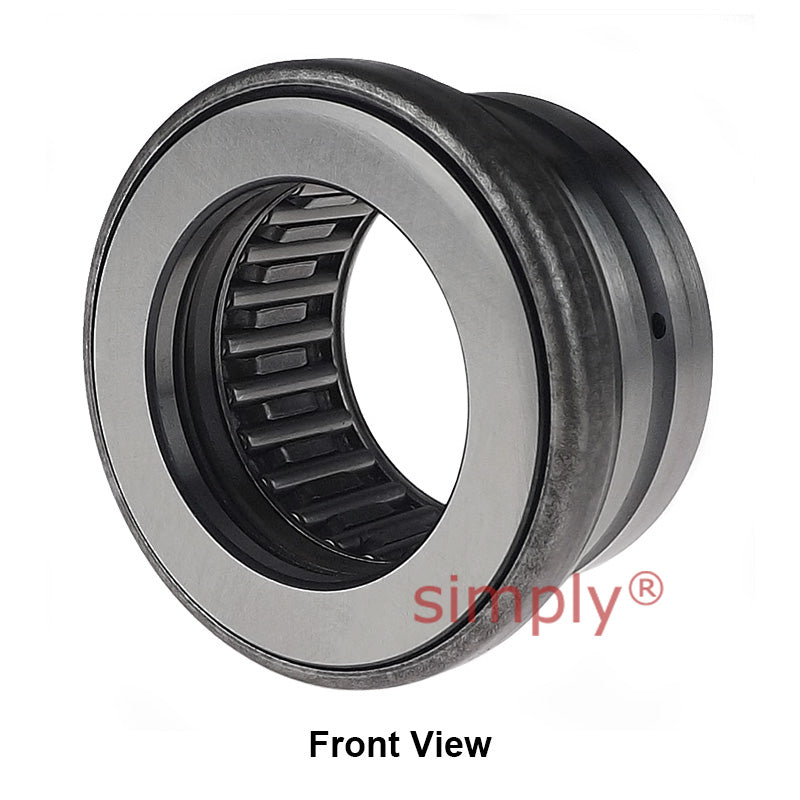

Major Brand RAXZ 545 Combined Bearing with Incorporated Thrust Plate 45x58x31mm Allow 2-3 Days
Major Brand RAXZ 545 Combined Bearing with Incorporated Thrust Plate 45x58x31mm Allow 2-3 Days
Regular price
£554.28
ex VAT£665.14inc. VAT
Regular price
Sale price
£554.28
ex VAT£665.14
inc. VAT
In stock
Price Break
10+
£493.31
19+
£465.60
29+
£460.06
39+
£454.51
49+
£448.97
74+
£443.43
99+
£415.71
199+
£410.17
249+
£404.63
499+
£399.08
999+
£388.00
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 31mm
Technical
Technical

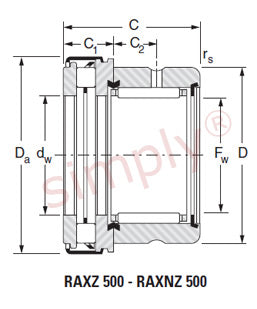

| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 31mm |
| da | 45mm |
| Da | 66mm |
| C1 | 13mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 49 kN |
| Axial static load | 143 kN |
| Speed rating | 4.5 rpm |
| Weight | 0.255 kg |
