SKU: RAXZ525-MB

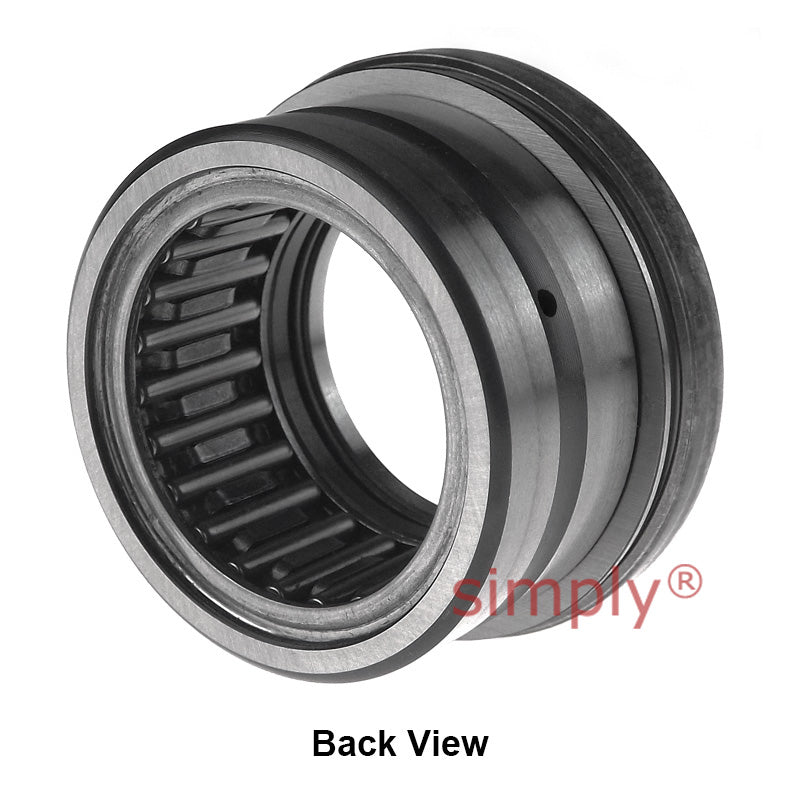

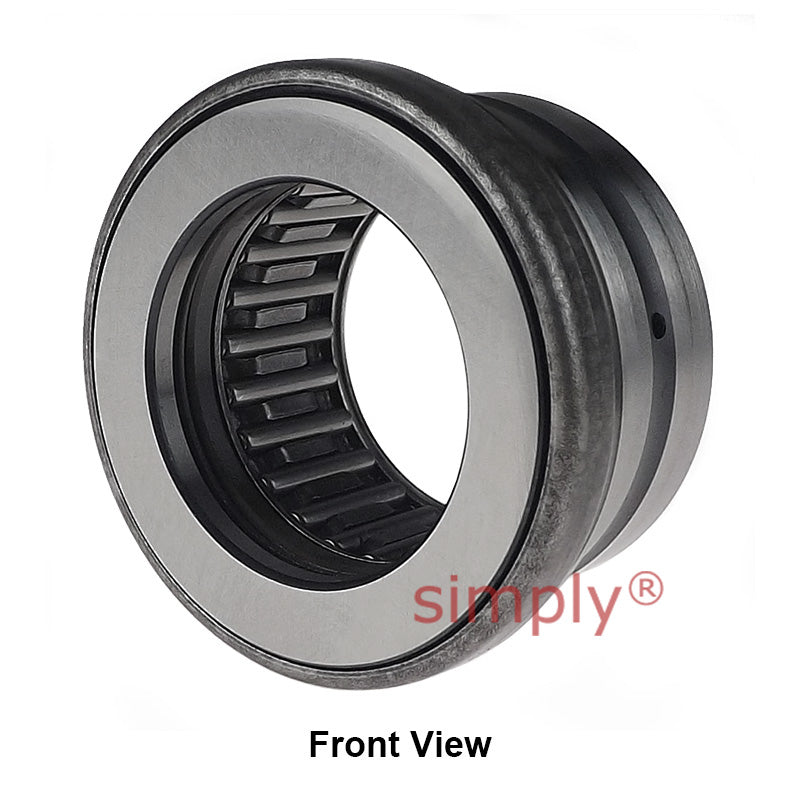

Major Brand RAXZ 525 Combined Bearing with Incorporated Thrust Plate 25x37x29mm Allow 2-3 Days
Major Brand RAXZ 525 Combined Bearing with Incorporated Thrust Plate 25x37x29mm Allow 2-3 Days
Regular price
£733.73
ex VAT£880.48inc. VAT
Regular price
Sale price
£733.73
ex VAT£880.48
inc. VAT
In stock
Price Break
10+
£653.02
19+
£616.33
29+
£608.99
39+
£601.65
49+
£594.32
74+
£586.98
99+
£550.29
199+
£542.96
249+
£535.62
499+
£528.28
999+
£513.61
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 29mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 29mm |
| da | 25mm |
| Da | 43mm |
| C1 | 11mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 15.1 kN |
| Radial static load | 26.2 kN |
| Axial dynamic load | 25.5 kN |
| Axial static load | 70 kN |
| Speed rating | 7500 rpm |
| Weight | 0.131 kg |
