SKU: RAXZ520-MB

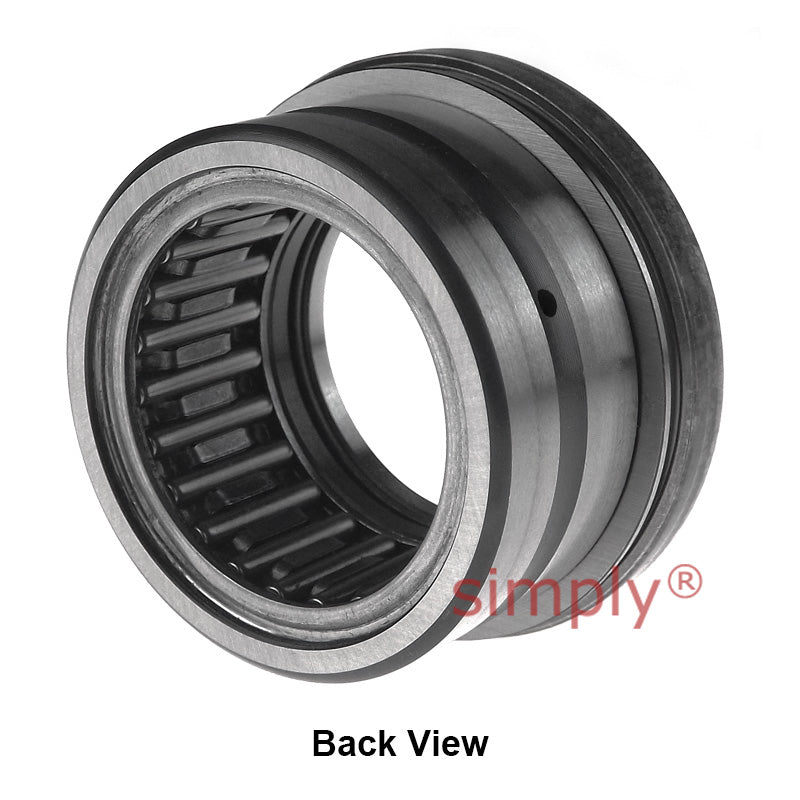

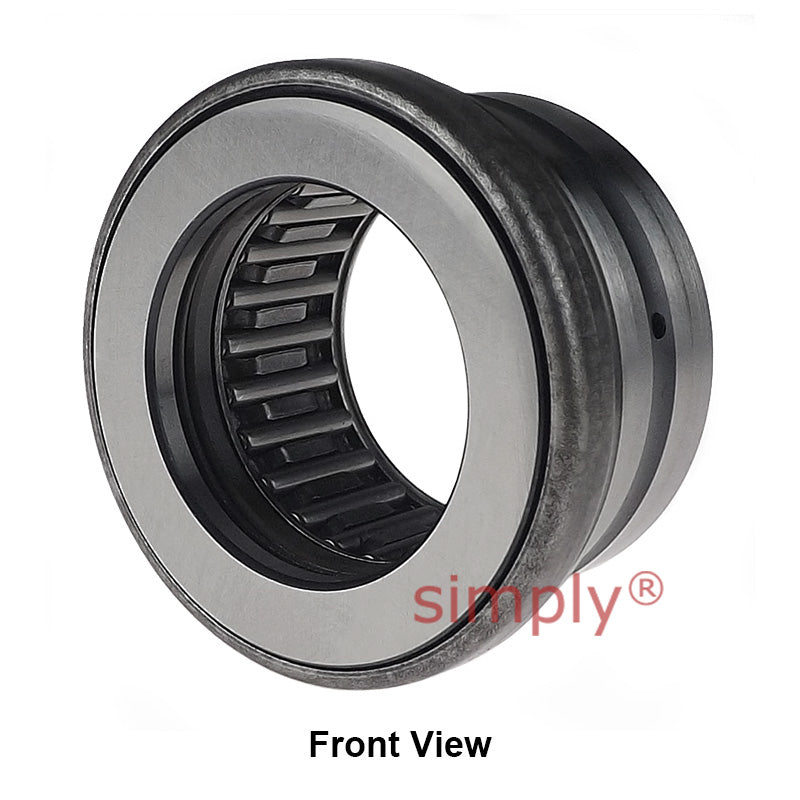

Major Brand RAXZ 520 Combined Bearing with Incorporated Thrust Plate 20x30x29mm Allow 2-3 Days
Major Brand RAXZ 520 Combined Bearing with Incorporated Thrust Plate 20x30x29mm Allow 2-3 Days
Regular price
£345.08
ex VAT£414.10inc. VAT
Regular price
Sale price
£345.08
ex VAT£414.10
inc. VAT
In stock
Price Break
10+
£307.12
19+
£289.87
29+
£286.42
39+
£282.97
49+
£279.52
74+
£276.07
99+
£258.81
199+
£255.36
249+
£251.91
499+
£248.46
999+
£241.56
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 29mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 29mm |
| da | 20mm |
| Da | 35.4mm |
| C1 | 11mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 22 kN |
| Axial static load | 54 kN |
| Speed rating | 9000 rpm |
| Weight | 0.086 kg |
