SKU: RAXZ517-MB
Major Brand RAXZ 517 Combined Bearing with Incorporated Thrust Plate 17x26x24mm Allow 2-3 Days
Major Brand RAXZ 517 Combined Bearing with Incorporated Thrust Plate 17x26x24mm Allow 2-3 Days
Regular price
£320.21
ex VAT£384.25inc. VAT
Regular price
Sale price
£320.21
ex VAT£384.25
inc. VAT
In stock
Price Break
10+
£284.99
19+
£268.98
29+
£265.77
39+
£262.57
49+
£259.37
74+
£256.17
99+
£240.16
199+
£236.96
249+
£233.75
499+
£230.55
999+
£224.15
Couldn't load pickup availability
Description
Description

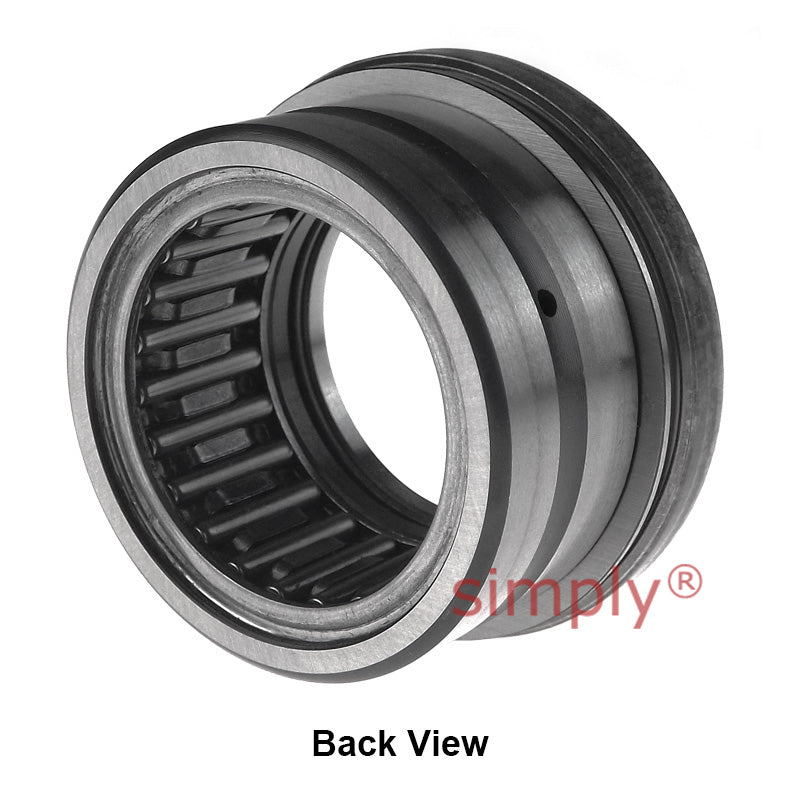

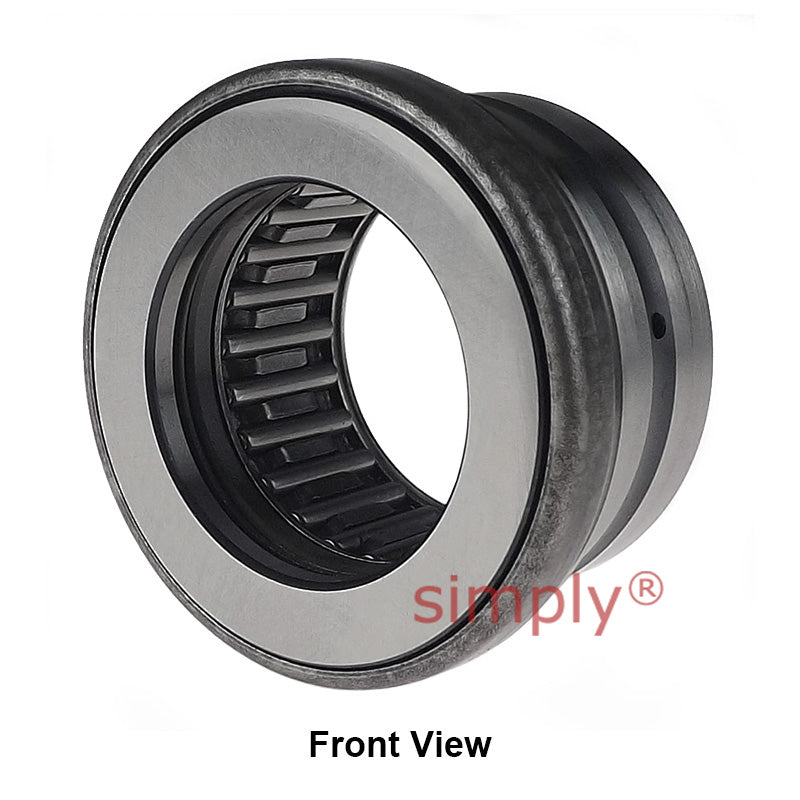

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 24mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 24mm |
| da | 17mm |
| Da | 30.4mm |
| C1 | 8mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 15 kN |
| Axial static load | 39 kN |
| Speed rating | 10500 rpm |
| Weight | 0.053 kg |
