SKU: RAXZ512-MB

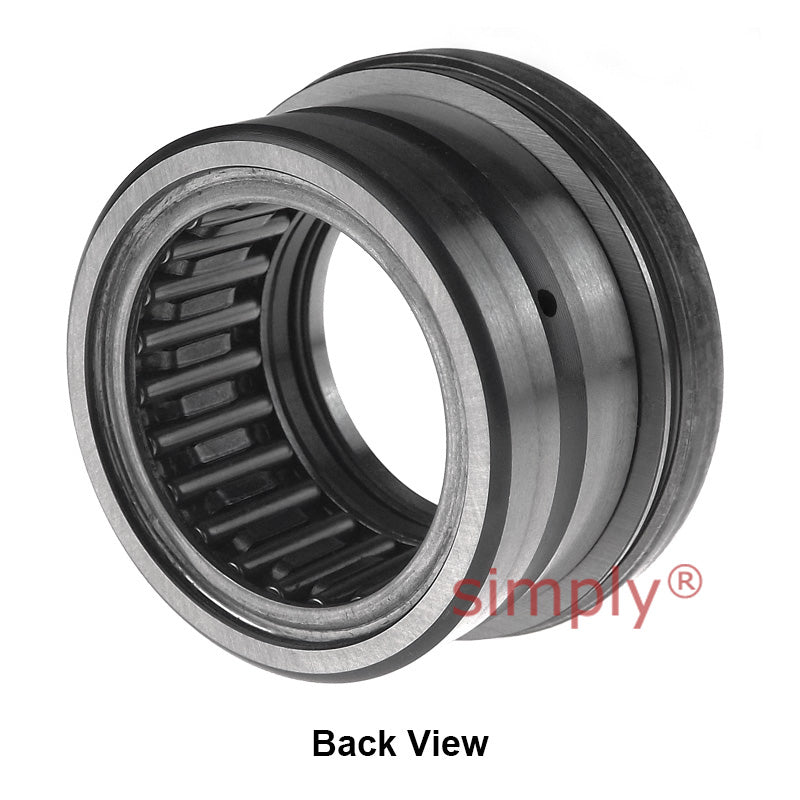

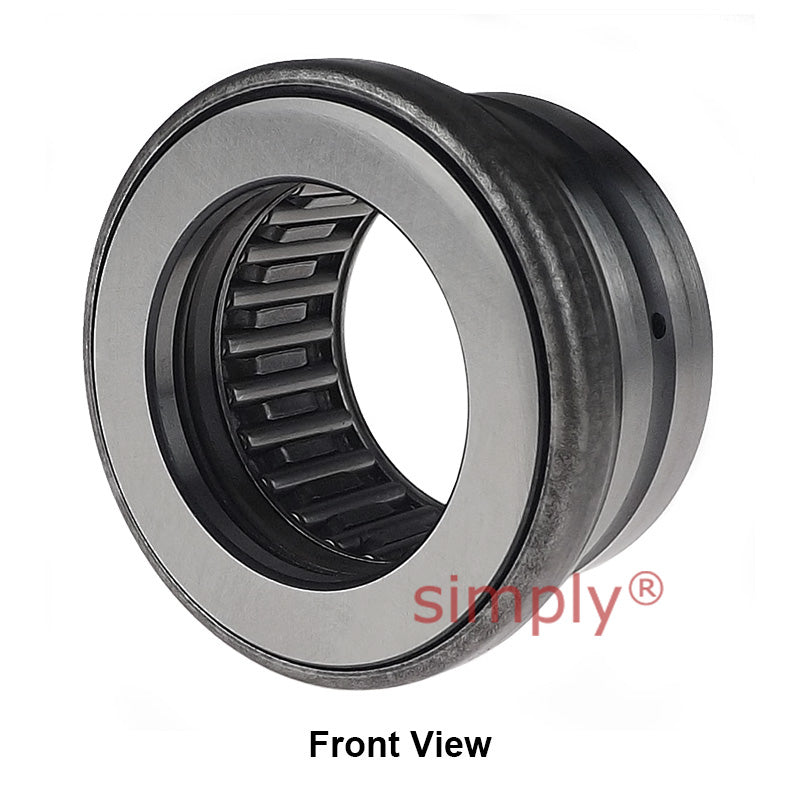

Major Brand RAXZ512 Combined Bearing with Incorporated Thrust Plate 12x21x22mm Allow 2-3 Days
Major Brand RAXZ512 Combined Bearing with Incorporated Thrust Plate 12x21x22mm Allow 2-3 Days
Regular price
£280.50
ex VAT£336.60inc. VAT
Regular price
Sale price
£280.50
ex VAT£336.60
inc. VAT
In stock
Price Break
10+
£249.65
19+
£235.62
29+
£232.82
39+
£230.01
49+
£227.21
74+
£224.40
99+
£210.38
199+
£207.57
249+
£204.77
499+
£201.96
999+
£196.35
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 22mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 21mm |
| C | 22mm |
| da | 12mm |
| Da | 26.4mm |
| C1 | 8mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.8 kN |
| Radial static load | 9 kN |
| Axial dynamic load | 12.7 kN |
| Axial static load | 29.5 kN |
| Speed rating | 13000 rpm |
| Weight | 0.039 kg |
