SKU: RAXPZ460-MB

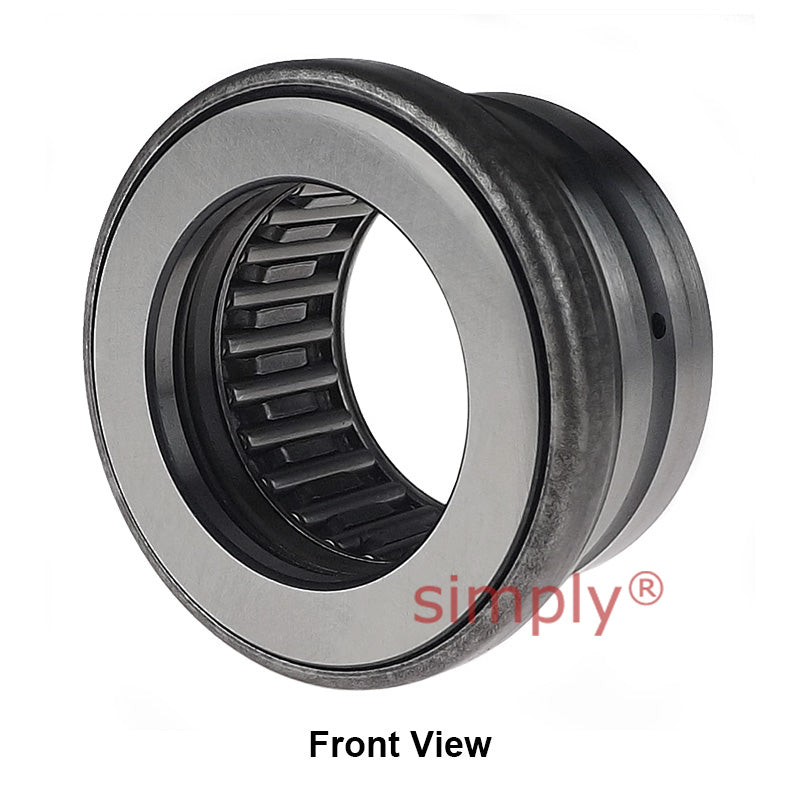

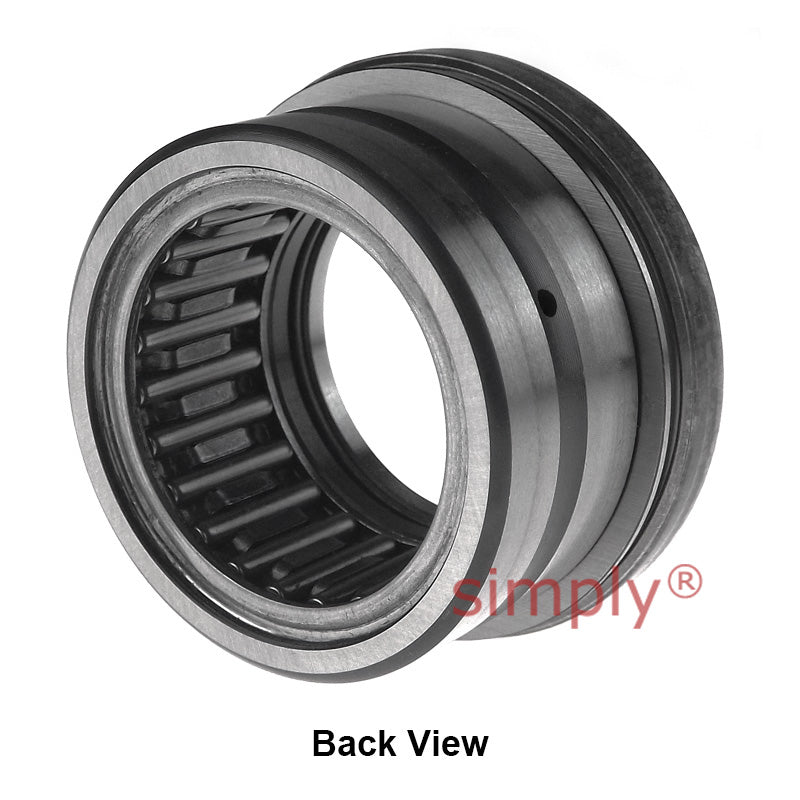

Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Major Brand RAXPZ 460 Combined Bearing with Incorporated Thrust Plate 60x72x32mm Allow 2-3 Days
Regular price
£603.01
ex VAT£723.61inc. VAT
Regular price
Sale price
£603.01
ex VAT£723.61
inc. VAT
In stock
Price Break
10+
£536.68
19+
£506.53
29+
£500.50
39+
£494.47
49+
£488.44
74+
£482.41
99+
£452.26
199+
£446.23
249+
£440.20
499+
£434.17
999+
£422.11
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 32mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 32mm |
| da | 60mm |
| Da | 86mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 31.5 kN |
| Axial static load | 193 kN |
| Speed rating | 3.5 rpm |
| Weight | 0.365 kg |
