SKU: RAXPZ445-NADELLA

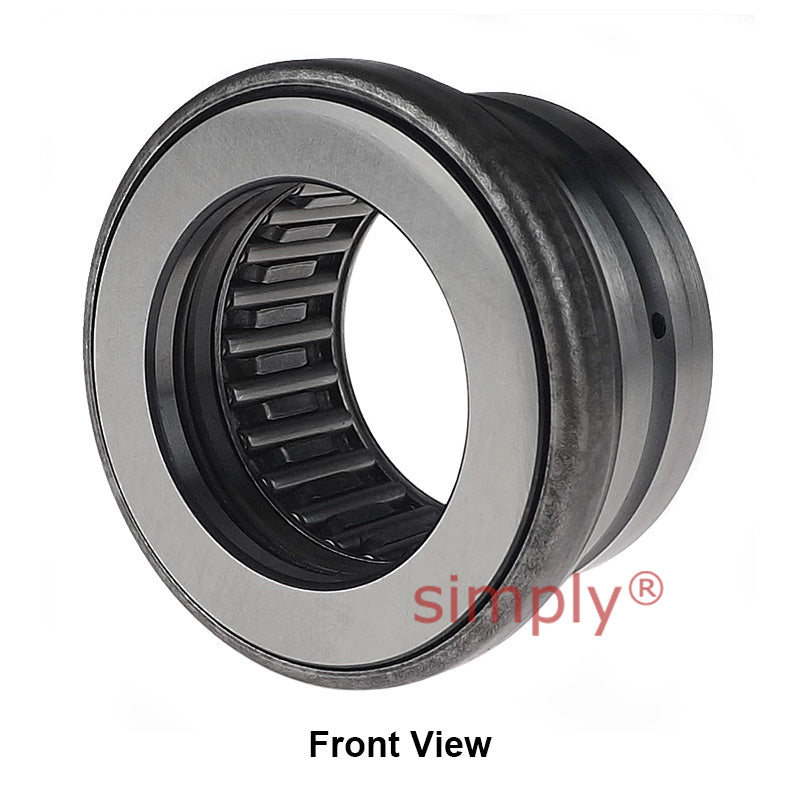

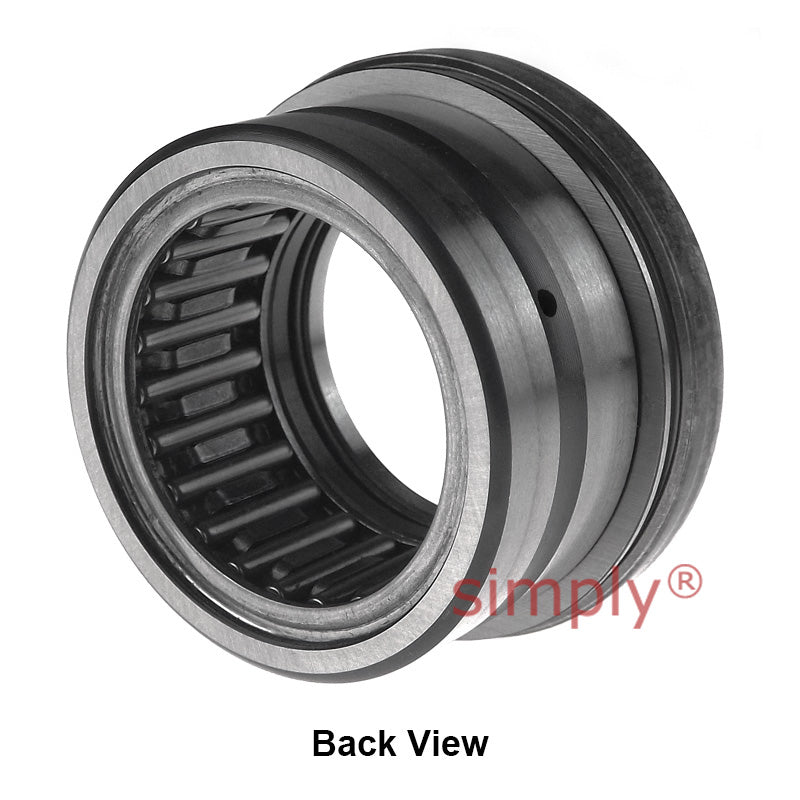

Nadella RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Nadella RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Regular price
£387.61
ex VAT£465.13inc. VAT
Regular price
Sale price
£387.61
ex VAT£465.13
inc. VAT
In stock
Price Break
5+
£383.73
10+
£368.23
20+
£360.48
50+
£348.85
100+
£341.10
500+
£321.72
1000+
£271.33
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 27mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 27mm |
| da | 45mm |
| Da | 66mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 21.8 kN |
| Axial static load | 109 kN |
| Speed rating | 4.5 rpm |
| Weight | 0.216 kg |
