SKU: RAXPZ420-NADELLA

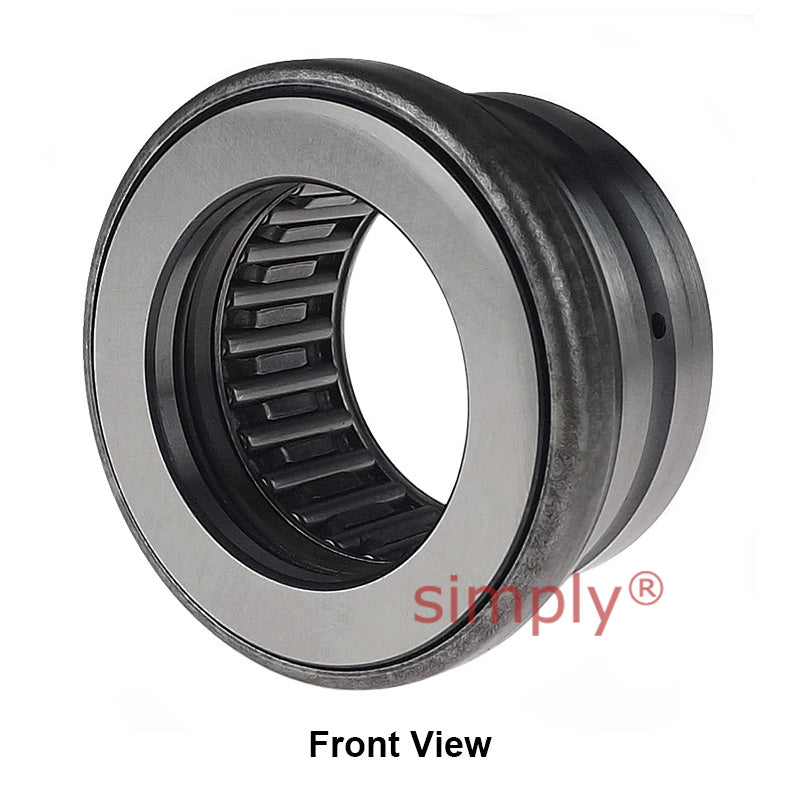

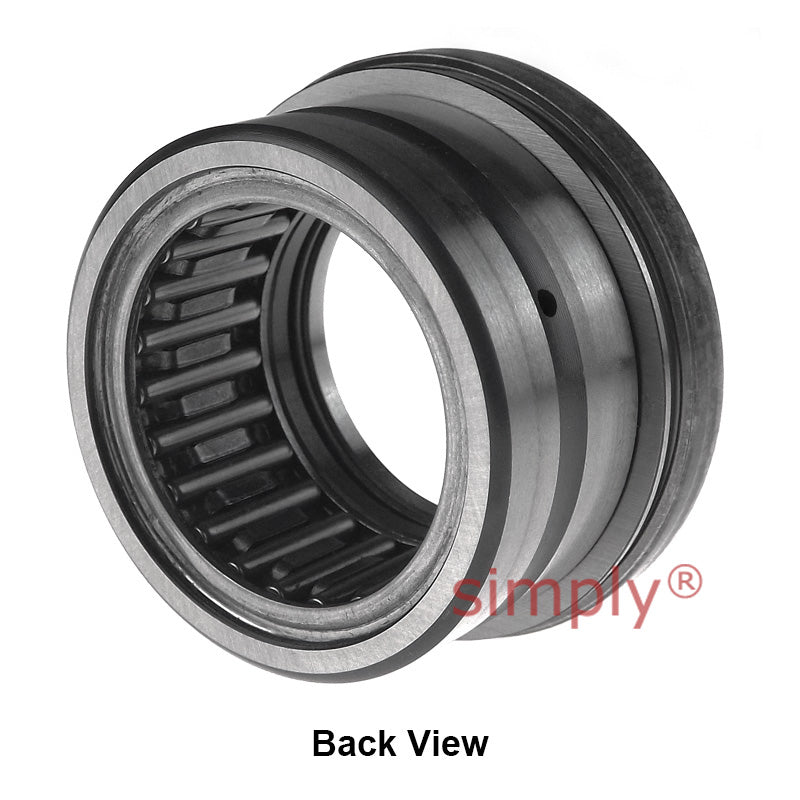

Nadella RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Nadella RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Regular price
£310.45
ex VAT£372.54inc. VAT
Regular price
Sale price
£310.45
ex VAT£372.54
inc. VAT
In stock
Price Break
5+
£307.35
10+
£294.93
20+
£288.72
50+
£279.41
100+
£273.20
500+
£257.67
1000+
£217.32
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 27mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 27mm |
| da | 20mm |
| Da | 35.4mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Speed rating | 9000 rpm |
| Weight | 0.079 kg |
