SKU: RAXPZ415-NADELLA
Nadella RAXPZ415 Combined Bearing with Incorporated Thrust Plate 15x24x21mm Allow 2-3 Days
Nadella RAXPZ415 Combined Bearing with Incorporated Thrust Plate 15x24x21mm Allow 2-3 Days
Regular price
£332.52
ex VAT£399.02inc. VAT
Regular price
Sale price
£332.52
ex VAT£399.02
inc. VAT
In stock
Price Break
5+
£329.19
10+
£315.89
20+
£309.24
50+
£299.27
100+
£292.62
500+
£275.99
1000+
£232.76
Couldn't load pickup availability
Description
Description

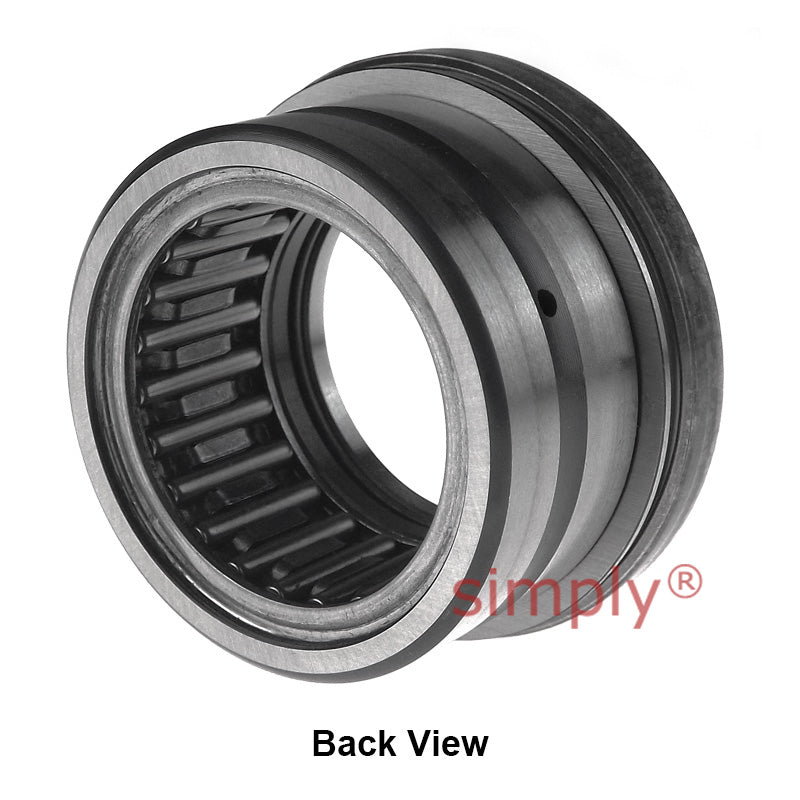

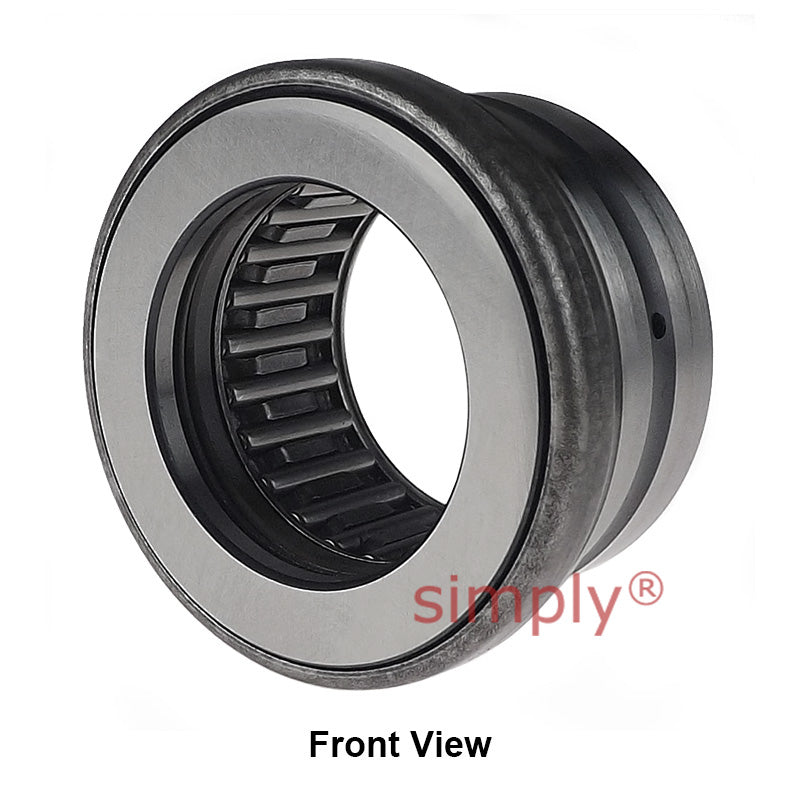

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 21mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 21mm |
| da | 15mm |
| Da | 28.4mm |
| C1 | 7mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 7.6 kN |
| Axial static load | 20.8 kN |
| Speed rating | 11500 rpm |
| Weight | 0.04 kg |
