SKU: RAXPZ410-NADELLA

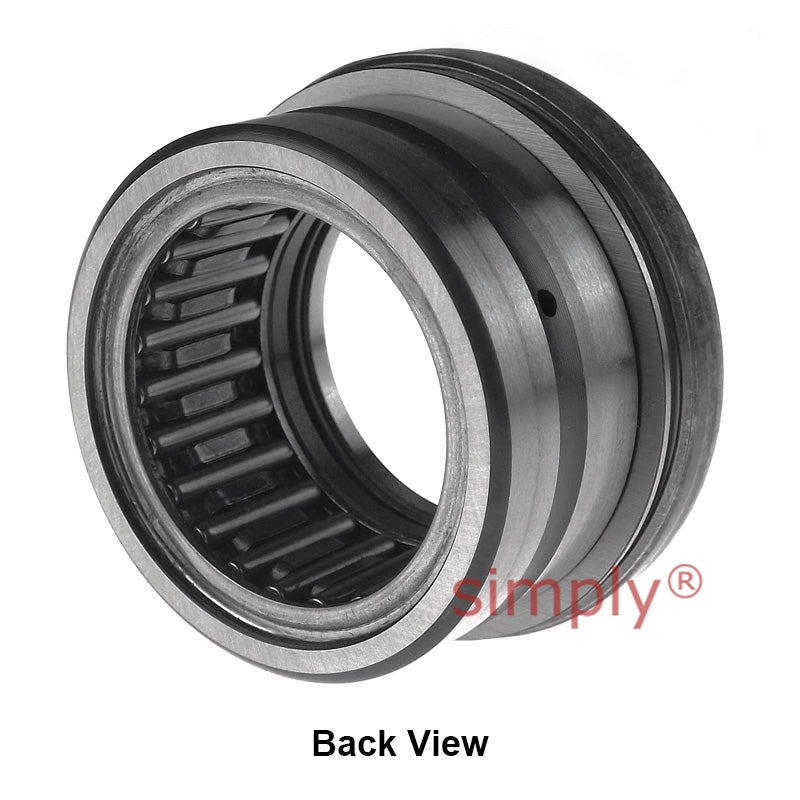

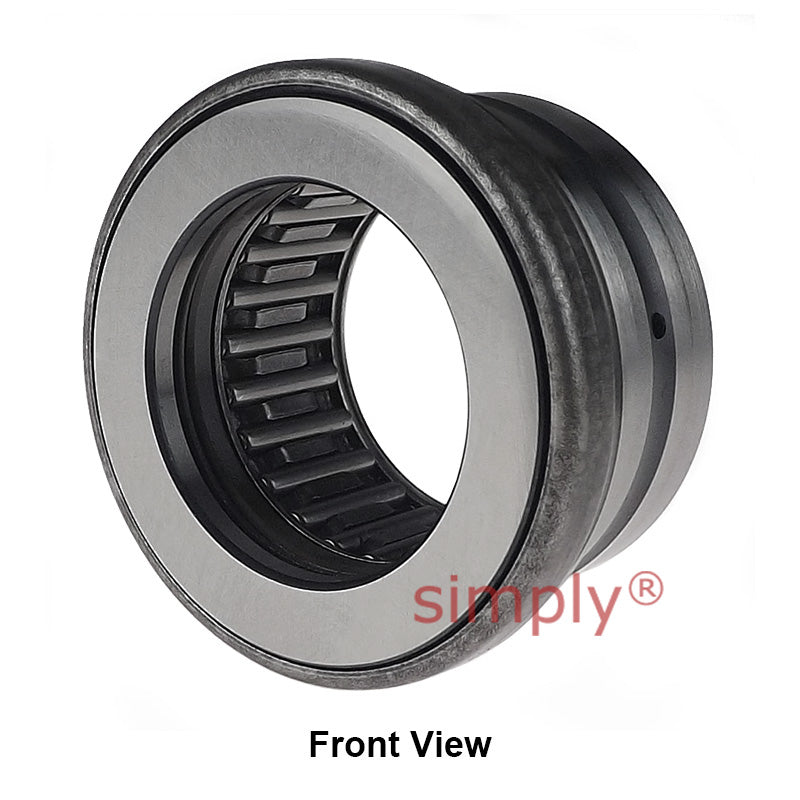

Nadella RAXPZ 410 Combined Bearing with Incorporated Thrust Plate 10x19x21mm Allow 2-3 Days
Nadella RAXPZ 410 Combined Bearing with Incorporated Thrust Plate 10x19x21mm Allow 2-3 Days
Regular price
£199.52
ex VAT£239.42inc. VAT
Regular price
Sale price
£199.52
ex VAT£239.42
inc. VAT
In stock
Price Break
5+
£197.52
10+
£189.54
20+
£185.55
50+
£179.57
100+
£175.58
500+
£165.60
1000+
£139.66
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 21mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| C | 21mm |
| da | 10mm |
| Da | 22.4mm |
| C1 | 7mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 5.9 kN |
| Radial static load | 7.2 kN |
| Axial dynamic load | 5 kN |
| Axial static load | 10.9 kN |
| Speed rating | 15500 rpm |
| Weight | 0.029 kg |
