SKU: RAX560-MB

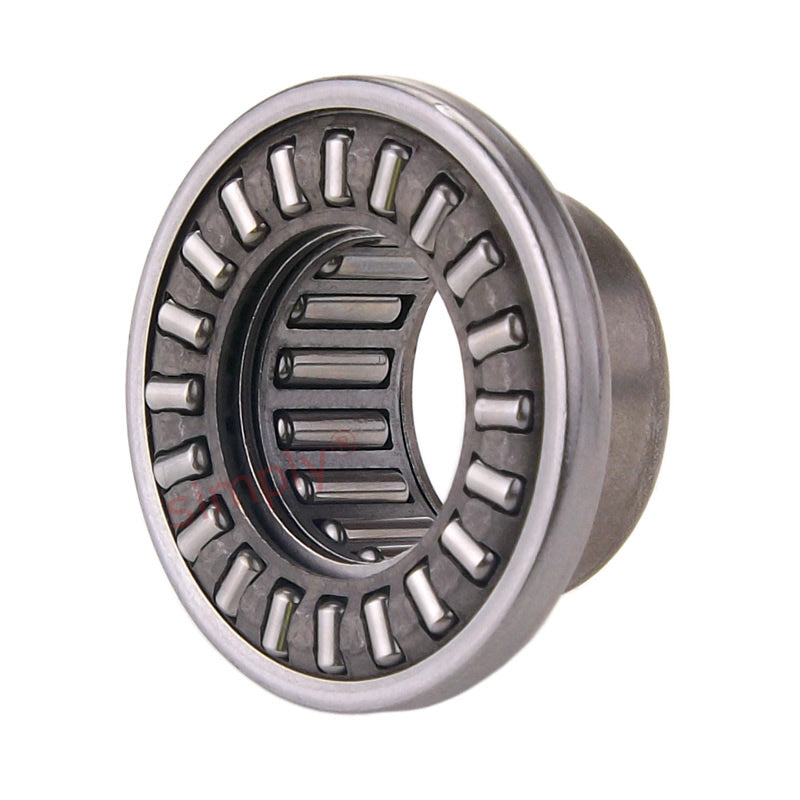

Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Regular price
£565.61
ex VAT£678.73inc. VAT
Regular price
Sale price
£565.61
ex VAT£678.73
inc. VAT
In stock
Price Break
10+
£503.39
19+
£475.11
29+
£469.45
39+
£463.80
49+
£458.14
74+
£452.49
99+
£424.21
199+
£418.55
249+
£412.89
499+
£407.24
999+
£395.93
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 32mm
- Width:
- 72mm
Technical
Technical
| Fw | 60mm |
|---|---|
| C | 32mm |
| D | 72mm |
| Da | 85.4mm |
| Eb | 63.5mm |
| Ea | 79.5mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 71 kN |
| Axial static load | 255 kN |
| Speed rating | 3500 rpm |
| Inner ring | JR 55x60x25 kN |
| Weight | 0.327 kg |
