SKU: RAX517-MB

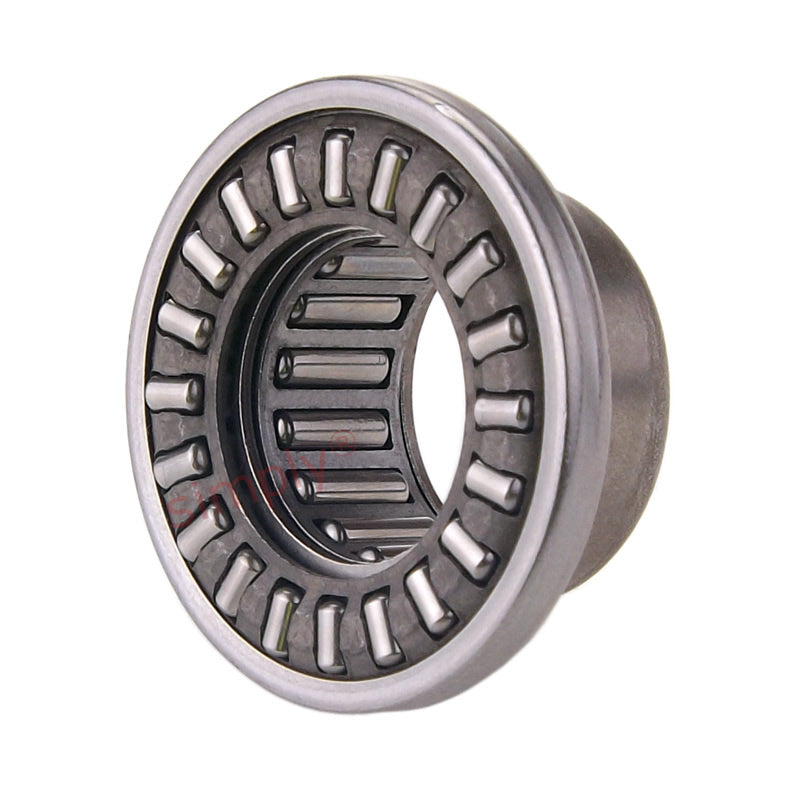

Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
Regular price
£279.44
ex VAT£335.33inc. VAT
Regular price
Sale price
£279.44
ex VAT£335.33
inc. VAT
In stock
Price Break
10+
£248.70
19+
£234.73
29+
£231.94
39+
£229.14
49+
£226.35
74+
£223.55
99+
£209.58
199+
£206.79
249+
£203.99
499+
£201.20
999+
£195.61
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 22mm
- Width:
- 26mm
Technical
Technical

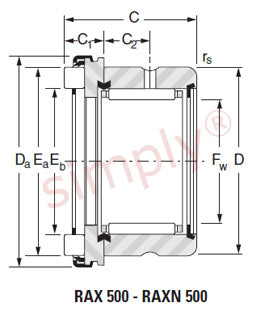

| Fw | 17mm |
|---|---|
| C | 22mm |
| D | 26mm |
| Da | 30mm |
| Eb | 18.8mm |
| Ea | 26.9mm |
| C1 | 6mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 15 kN |
| Axial static load | 39 kN |
| Speed rating | 10500 rpm |
| Inner ring | JR 14x17x17 kN |
| Weight | 0.044 kg |
