SKU: RAX515-MB

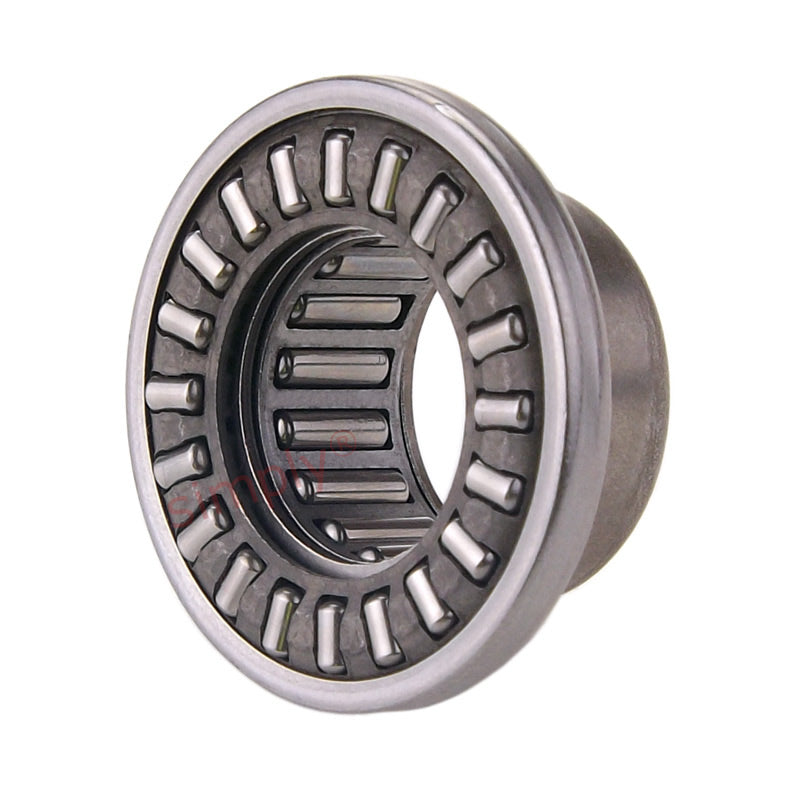

Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
Regular price
£257.29
ex VAT£308.75inc. VAT
Regular price
Sale price
£257.29
ex VAT£308.75
inc. VAT
In stock
Price Break
10+
£228.99
19+
£216.12
29+
£213.55
39+
£210.98
49+
£208.41
74+
£205.83
99+
£192.97
199+
£190.39
249+
£187.82
499+
£185.25
999+
£180.10
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 20mm
- Width:
- 24mm
Technical
Technical
| Fw | 15mm |
|---|---|
| C | 20mm |
| D | 24mm |
| Da | 28mm |
| Eb | 16.8mm |
| Ea | 24.9mm |
| C1 | 6mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 14 kN |
| Axial static load | 34 kN |
| Speed rating | 11500 rpm |
| Inner ring | JR 12x15x16 kN |
| Weight | 0.036 kg |
