SKU: RAX435-NADELLA

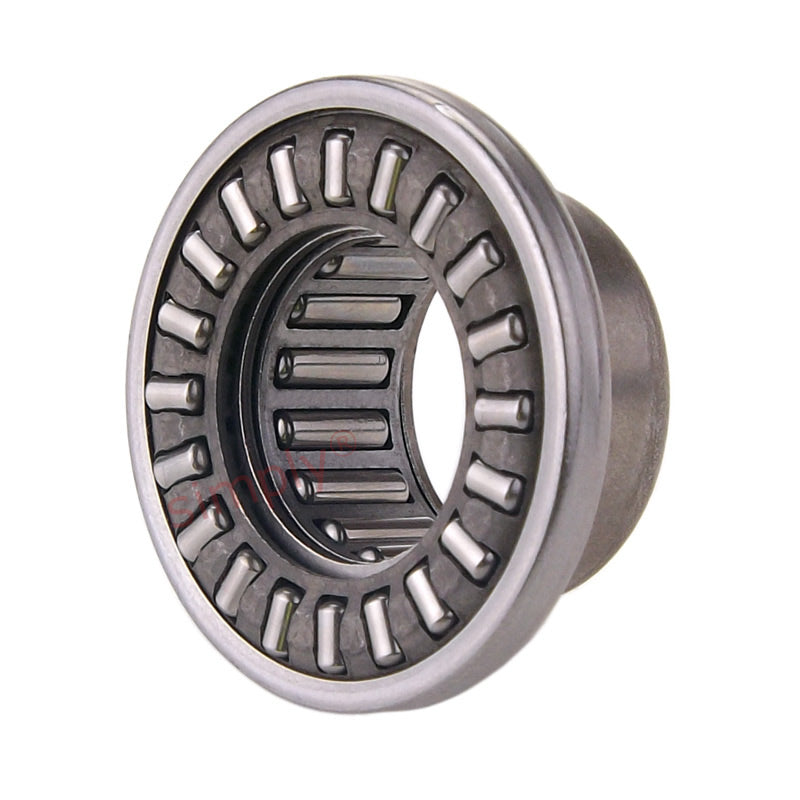

Nadella RAX 435 Needle Combined Bearing with Needle Thrust Cage 35x47x24mm Allow 2-3 Days
Nadella RAX 435 Needle Combined Bearing with Needle Thrust Cage 35x47x24mm Allow 2-3 Days
Regular price
£221.64
ex VAT£265.97inc. VAT
Regular price
Sale price
£221.64
ex VAT£265.97
inc. VAT
In stock
Price Break
5+
£219.42
10+
£210.56
20+
£206.13
50+
£199.48
100+
£195.04
500+
£183.96
1000+
£155.15
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 24mm
- Width:
- 47mm
Technical
Technical
| Fw | 35mm |
|---|---|
| C | 24mm |
| D | 47mm |
| Da | 53mm |
| Eb | 37.2mm |
| Ea | 49mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 22.1 kN |
| Radial static load | 40.8 kN |
| Axial dynamic load | 18.9 kN |
| Axial static load | 84 kN |
| Speed rating | 5500 rpm |
| Inner ring | JR 30x35x20 kN |
| Weight | 0.13 kg |
