SKU: RAX430-MB

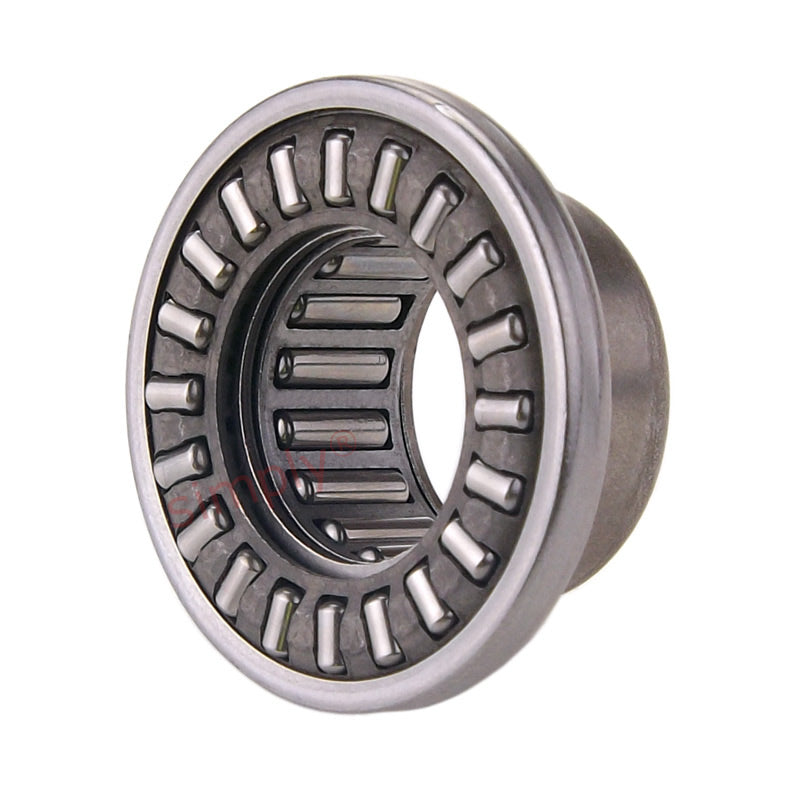

Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Regular price
£88.44
ex VAT£106.13inc. VAT
Regular price
Sale price
£88.44
ex VAT£106.13
inc. VAT
In stock
Price Break
10+
£78.71
19+
£74.29
29+
£73.41
39+
£72.52
49+
£71.64
74+
£70.75
99+
£66.33
199+
£65.45
249+
£64.56
499+
£63.68
999+
£61.91
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 24mm
- Width:
- 42mm
Technical
Technical
| Fw | 30mm |
|---|---|
| C | 24mm |
| D | 42mm |
| Da | 47mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 14.5 kN |
| Axial static load | 57 kN |
| Speed rating | 6500 rpm |
| Inner ring | JR 25x30x20 kN |
| Weight | 0.111 kg |
