SKU: RAX420-MB

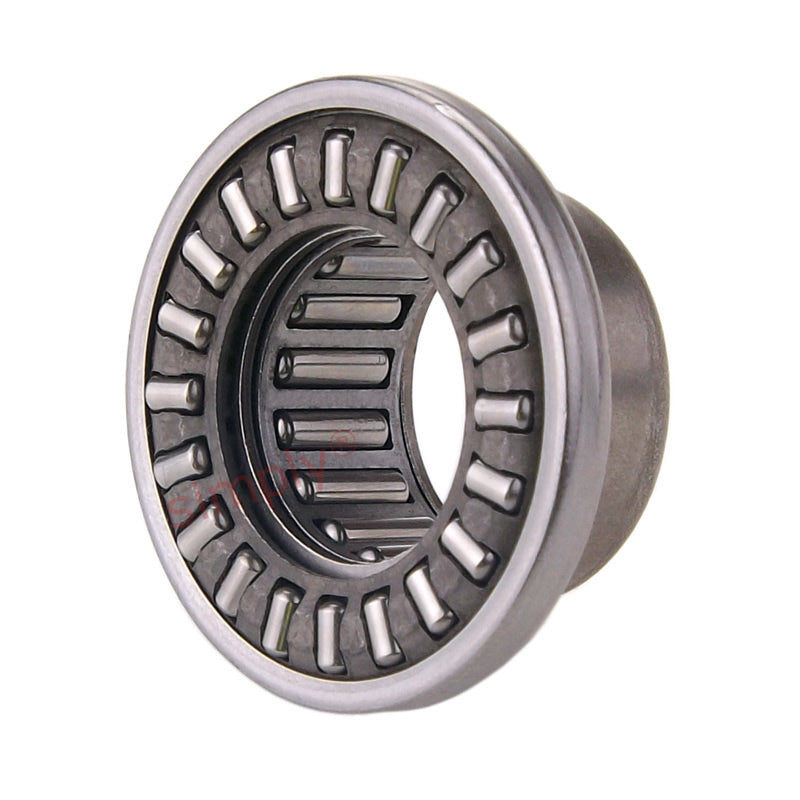

Major Brand RAX 420 Needle Combined Bearing With Needle Thrust Cage 20x30x24mm
Major Brand RAX 420 Needle Combined Bearing With Needle Thrust Cage 20x30x24mm
Regular price
£117.66
ex VAT£141.19inc. VAT
Regular price
Sale price
£117.66
ex VAT£141.19
inc. VAT
In stock
Price Break
10+
£104.72
19+
£98.83
29+
£97.66
39+
£96.48
49+
£95.30
74+
£94.13
99+
£88.24
199+
£87.07
249+
£85.89
499+
£84.71
999+
£82.36
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 24mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| C | 24mm |
| D | 30mm |
| Da | 35mm |
| Eb | 22mm |
| Ea | 31.6mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Speed rating | 9000 rpm |
| Inner ring | JR 17x20x20 kN |
| Weight | 0.066 kg |
