SKU: RAX415-NADELLA

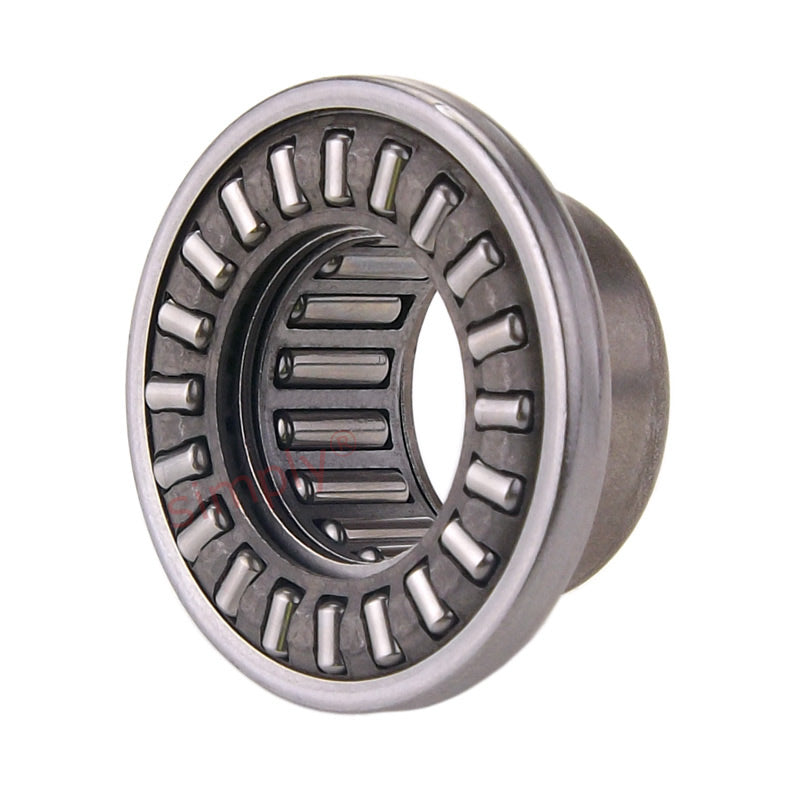

Nadella RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
Nadella RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
Regular price
£177.35
ex VAT£212.82inc. VAT
Regular price
Sale price
£177.35
ex VAT£212.82
inc. VAT
In stock
Price Break
5+
£175.58
10+
£168.48
20+
£164.94
50+
£159.62
100+
£156.07
500+
£147.20
1000+
£124.15
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 19mm
- Width:
- 24mm
Technical
Technical
| Fw | 15mm |
|---|---|
| C | 19mm |
| D | 24mm |
| Da | 28mm |
| Eb | 17mm |
| Ea | 24.6mm |
| C1 | 5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 7.6 kN |
| Axial static load | 20.8 kN |
| Speed rating | 11500 rpm |
| Inner ring | JR 12x15x16 kN |
| Weight | 0.034 kg |
