SKU: RAE30-NPP-NR-INA

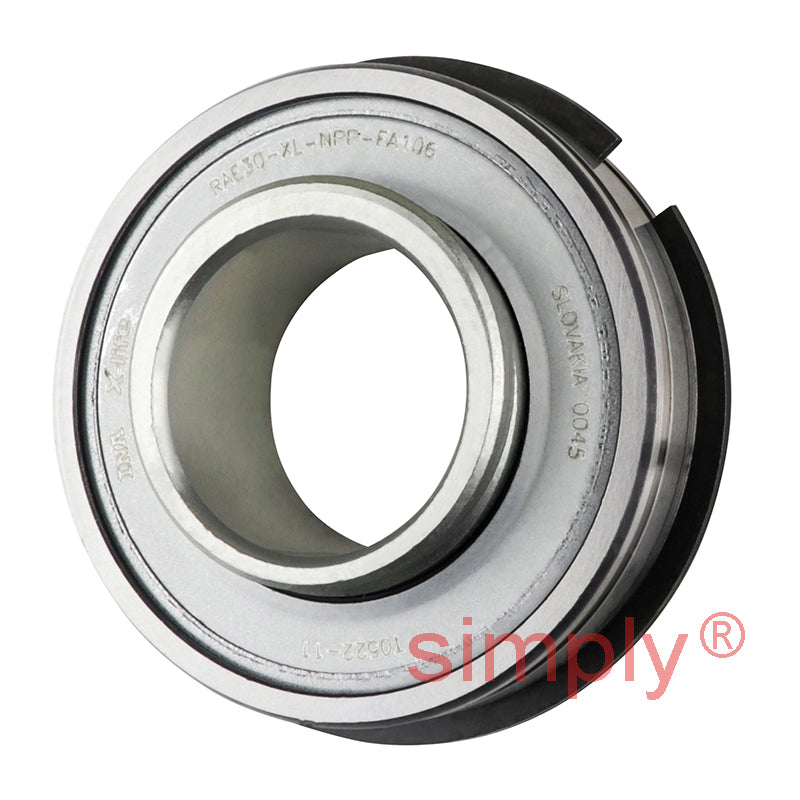

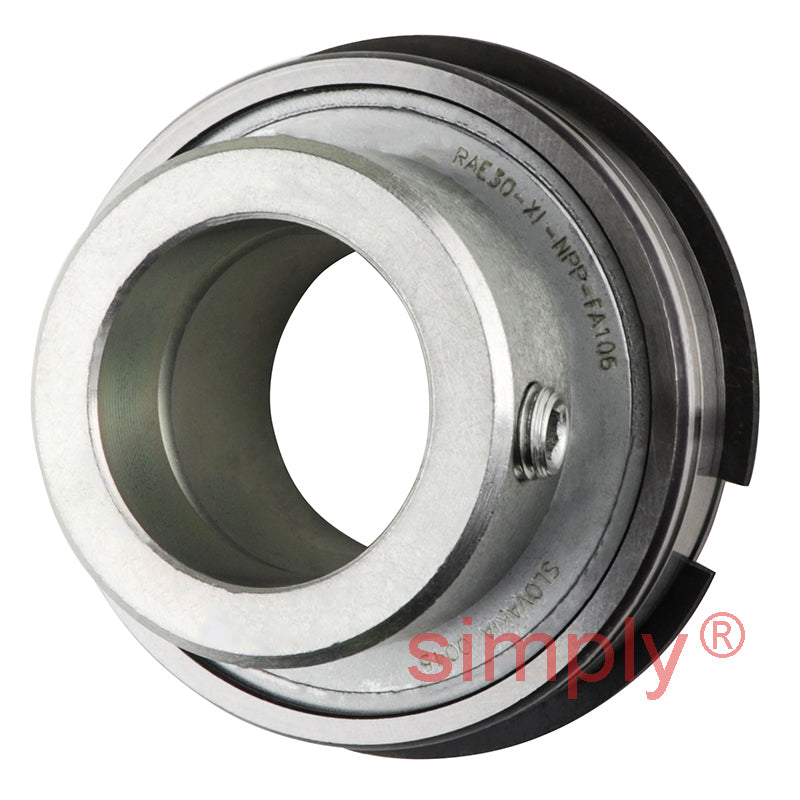

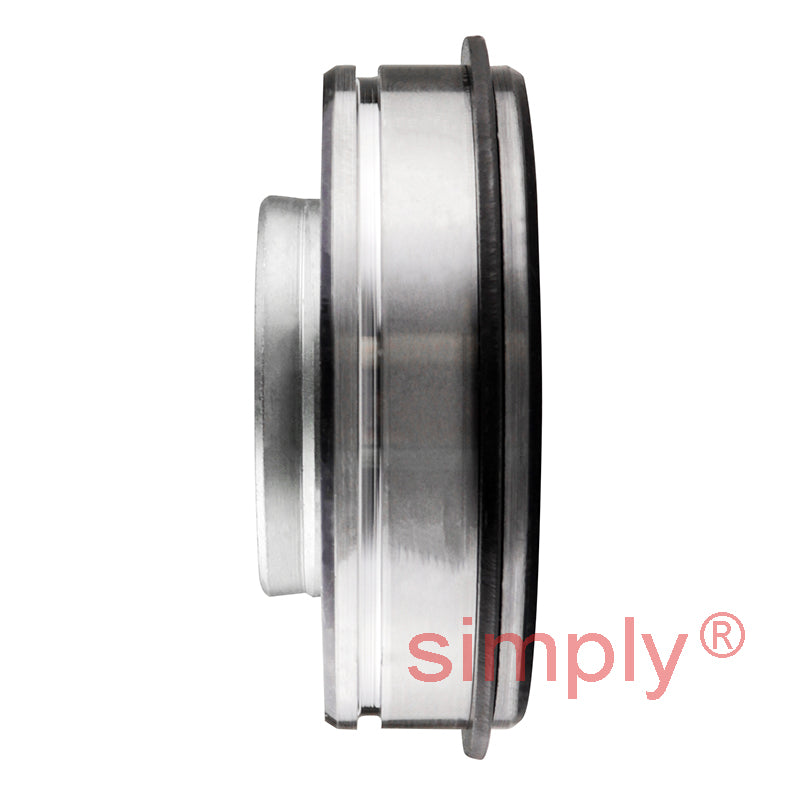

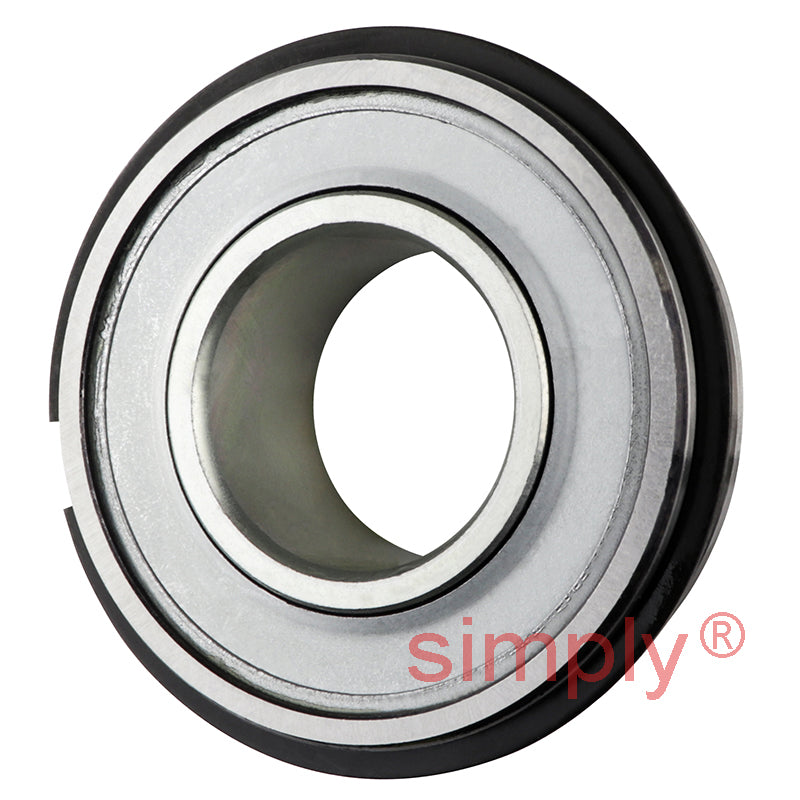

INA RAE30XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 30x62x35.8mm
INA RAE30XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 30x62x35.8mm
Regular price
£24.12
ex VAT£28.94inc. VAT
Regular price
Sale price
£24.12
ex VAT£28.94
inc. VAT
In stock
Price Break
10+
£21.47
19+
£20.26
29+
£20.02
39+
£19.78
49+
£19.54
74+
£19.30
99+
£18.09
199+
£17.85
249+
£17.61
499+
£17.37
999+
£16.88
Couldn't load pickup availability
Description
Description
|

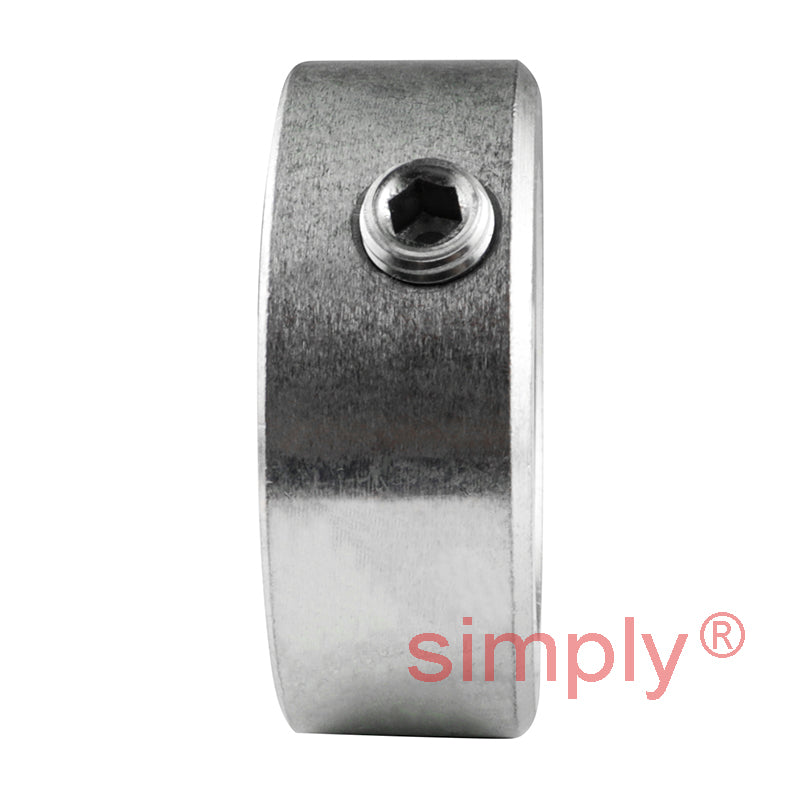

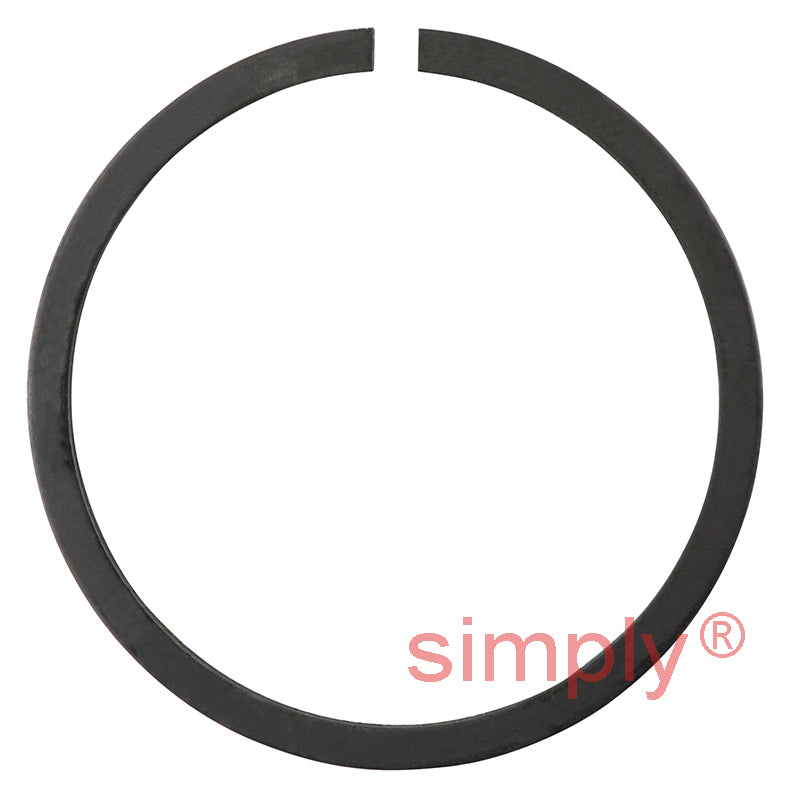

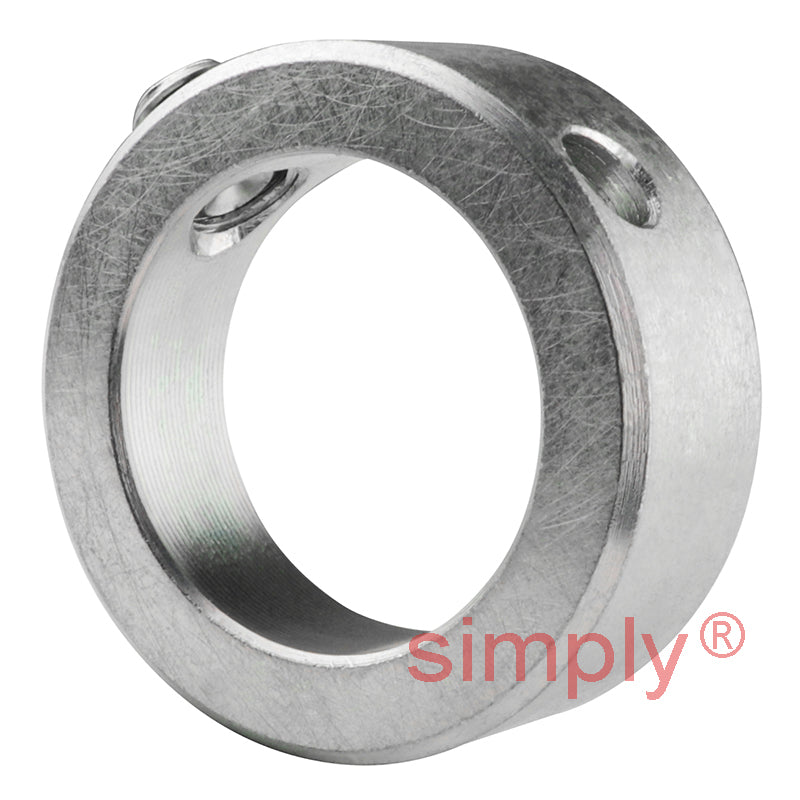

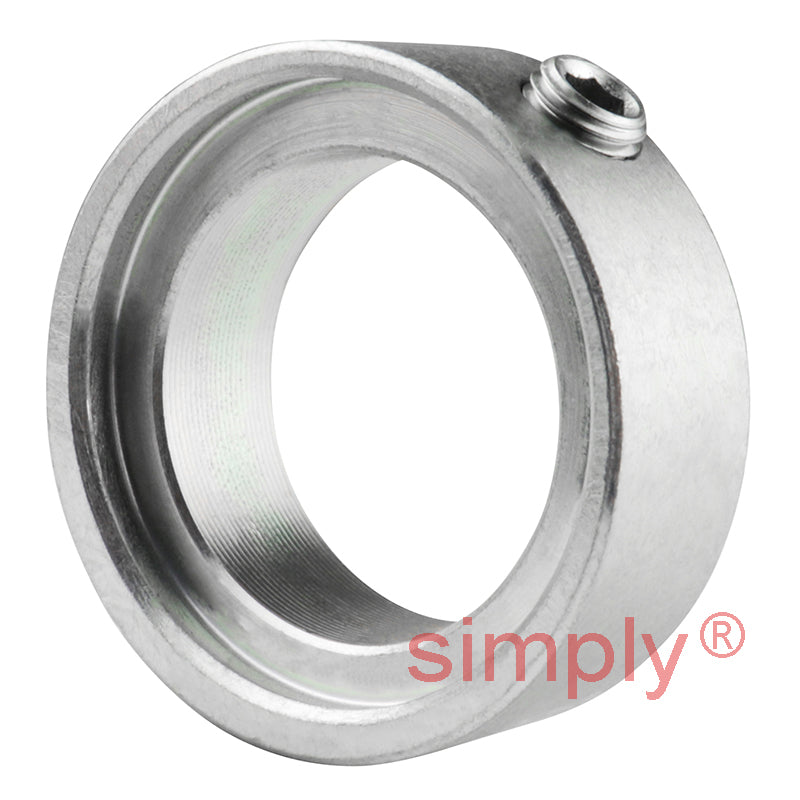

INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
- Type:
- Parallel Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B1 | 35.8mm |
| A | 4.98mm |
| Tolerance | -0.3 |
| a | 1.7mm |
| B | 23.8mm |
| C | 18mm |
| D2 | 67.7mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.33 kg |
